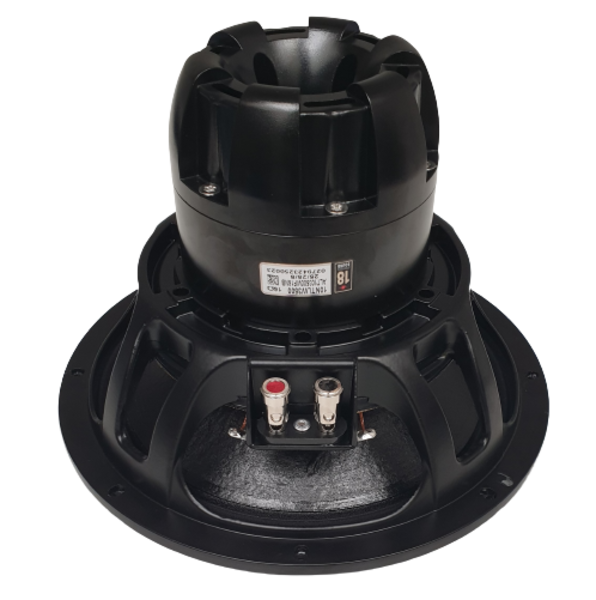

11_15_37_732_12_11_14_452_20230628_112646_removebg_preview

Features

  • 95 dB SPL 1W / 1m average sensitivity
  • Dual 88 mm (3.5 in) voice coil
  • 800 W AES power handling
  • Extremely balanced BL shape for maximum SPL
  • Optimized thermal conductivity
  • Maximum linearity and inductance symmetry for extended mid-band clarity
  • Ideal for two-ways and line array applications
  • 2 x Single demodulating ring
The 10NTLW3500 represents the last add on to the dual gap family, which is the state of the art of 18sound components and technology for high power, finest quality applications.
The dual gap technology comes directly from the Tetracoil motor structure and applies its benefits to a wider frequency band, making the 10NTLW3500 capable of working perfectly both as a woofer and as a midbass with unmatched power and the lowest distortion/pressure ratio in this dimension.
Optimized thermal conductivity allows great power handling (up to 1600 watts), the extremely balanced Bl shape together with the ultra linear suspension, maximizes Spl keeping the lowest intermodulation distortion in the market, giving the 10NTLW3500 the amazing capability of reproducing a deep and full low end, together with perfect clarity mids. Both magnetic gaps are also equipped with two separated single demodulating rings.
This unique features, makes the 10NTLW3500 the perfect component for highest quality line arrays and two way systems without the need of a midband dedicated component.

Specifications

Design

Parameters

Mounting and Shipping Info

  • Nominal Impedance8 Ω
  • Minimum Impedance5.9 Ω
  • Nominal Power Handling1800 W
  • Continuous Power Handling21600 W
  • Sensitivity395.0 dB
  • Frequency Range60 - 4000 Hz
  • Voice Coil Diameter88 mm (3.46 in)
  • Winding Materialaluminum
  • Winding Depth22.0 mm (0.87 in)
  • Magnetic Gap Depth12.5 mm (0.49 in)
  • Surround ShapeTriple roll
  • Cone ShapeCurvilinear
  • Magnet MaterialNeo
  • Woofer Cone TreatmentReinforced, water repellent, treated paper
  • Recommended Enclosure20.0 dm3 (0.71 ft3)
  • Recommended Tuning71 Hz
  • Resonance Frequency65 Hz
  • Re5.1 Ω
  • Qes0.36
  • Qms11.6
  • Qts0.35
  • Vas16.0 dm3 (0.57 ft3)
  • Sd346.0 cm2 (53.63 in2)
  • η₀1.1 %
  • Xmax7.9 mm
  • Xvar8.5 mm
  • Mms58.0 g
  • Bl19.2 Txm
  • Le0.42 mH
  • EBP180 Hz

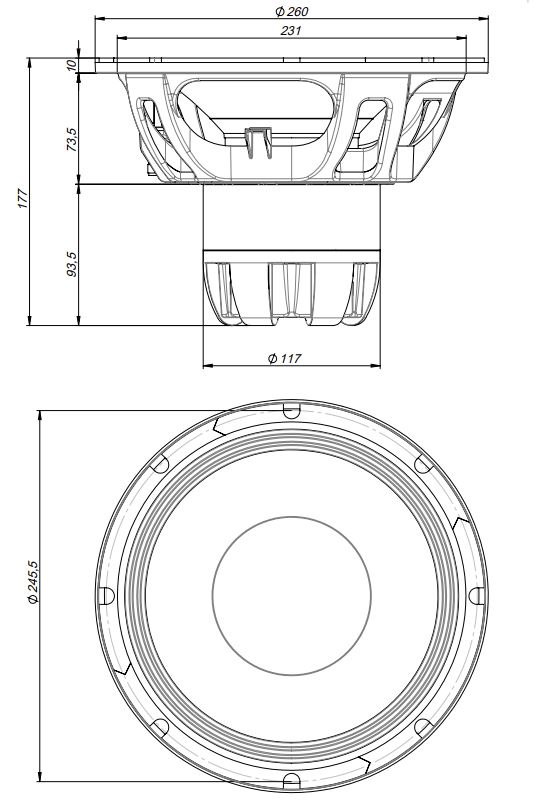

  • Overall Diameter260 mm (10.24 in)
  • Bolt Circle Diameter245 mm (9.65 in)
  • Baffle Cutout Diameter233.0 mm (9.17 in)
  • Depth177 mm (6.97 in)
  • Flange and Gasket Thickness11 mm (0.43 in)
  • Net Weight4.2 kg (9.26 lb)
  • Shipping Weight4.7 kg (10.36 lb)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
