Home
Products
LF drivers
10NTLW3500
Drawing
Datasheet
compare
16Ω
10NTLW3500 16Ω
8Ω
10NTLW3500 8Ω
10.0
In

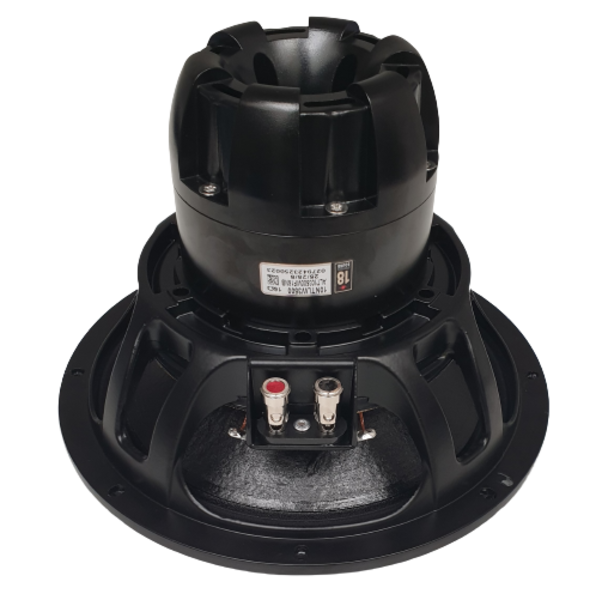

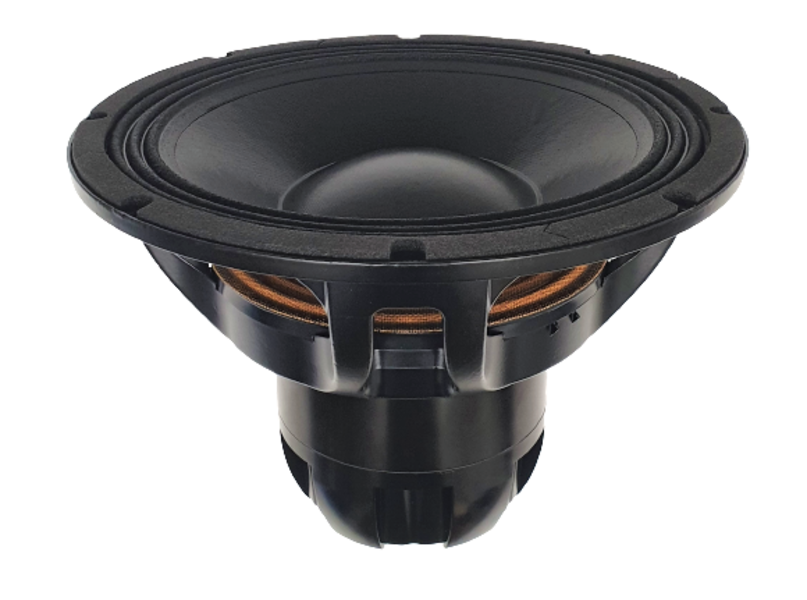

10NTLW3500
10NTLW3500
10.0
In
16Ω
10NTLW3500 16Ω
8Ω
10NTLW3500 8Ω
compare
Drawing
Datasheet
Technologies
SDR - Single Demodulating Ring
Specifications
Design
Parameters
Mounting and Shipping Info

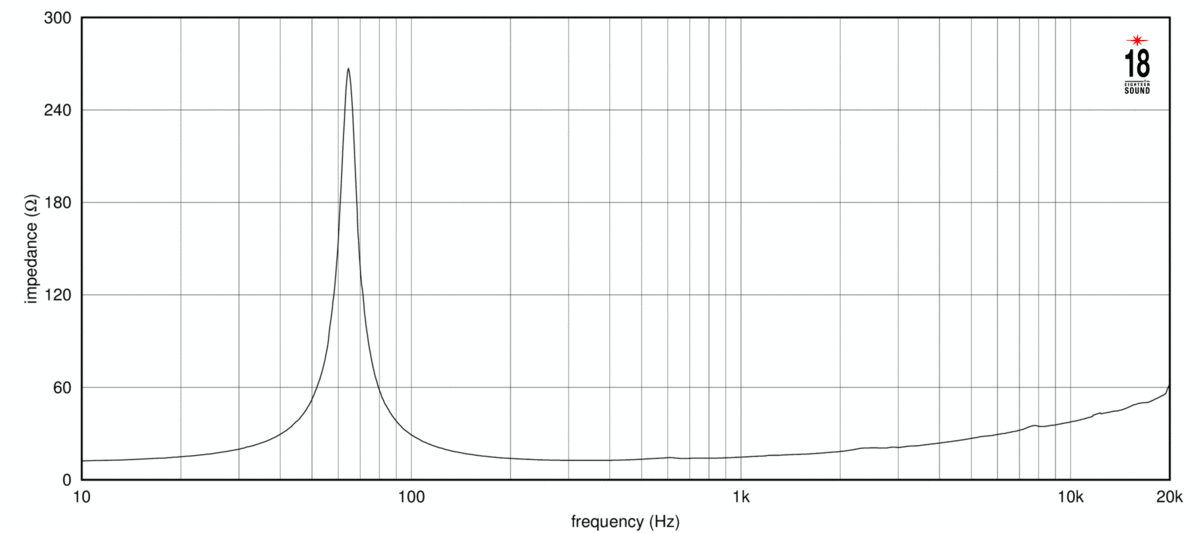

Nominal Impedance
16 Ω
Minimum Impedance
12.6 Ω
Nominal Power Handling
1
800 W
Continuous Power Handling
2
1600 W

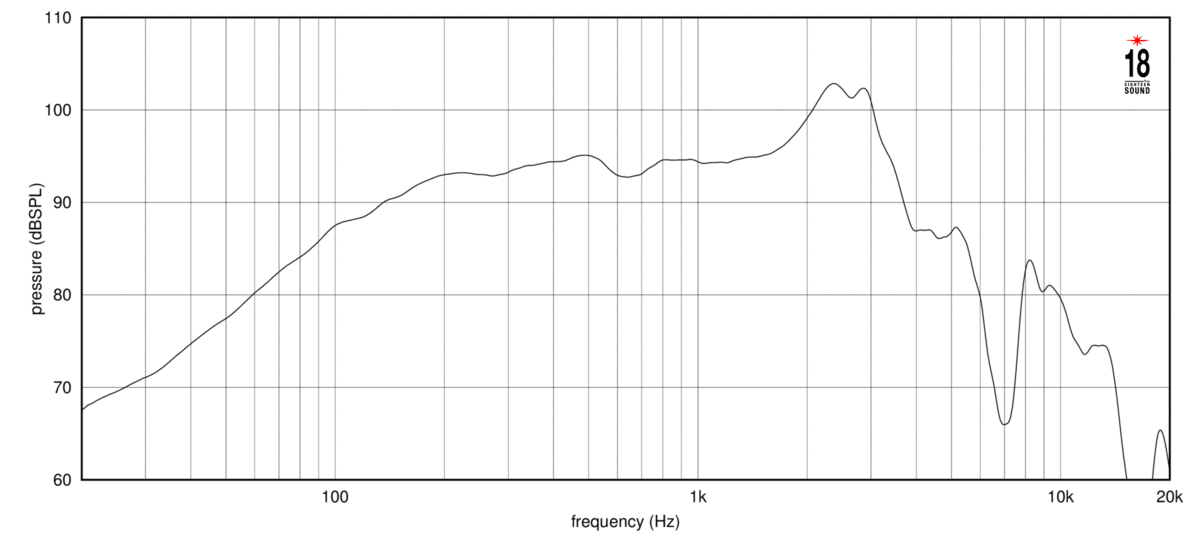

Sensitivity
3
94.0 dB
Frequency Range
60 - 3500 Hz
Voice Coil Diameter
88 mm (3.5 in)
Winding Depth
19.0 mm (0.75 in)
Magnetic Gap Depth
12.5 mm (0.49 in)
Surround Shape
Triple roll
Cone Shape
Curvilinear
Magnet Material
Neo
Woofer Cone Treatment
Reinforced, water repellent, treated paper
Recommended Enclosure
20.0 dm
3
(0.71 ft
3
)
Recommended Tuning
58 Hz
Resonance Frequency
64 Hz
Re
11.4 Ω
Qes
0.46
Qms
10.8
Qts
0.45
Vas
18.1 dm
3
(0.64 ft
3
)
Sd
346.0 cm
2
(53.63 in
2
)
η₀
1.0 %
Xmax
6.4 mm
Xvar
8.5 mm
Mms
58.0 g
Bl
23.9 Txm
Le
0.69 mH
EBP
139 Hz
Overall Diameter
260 mm (10.24 in)
Bolt Circle Diameter
245 mm (9.65 in)
Baffle Cutout Diameter
233.0 mm (9.17 in)
Depth
177 mm (6.97 in)
Flange and Gasket Thickness
10 mm (0.39 in)
Net Weight
4.2 kg (9.26 lb)
Shipping Weight
4.7 kg (10.36 lb)
2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
