Home
Products
LF drivers

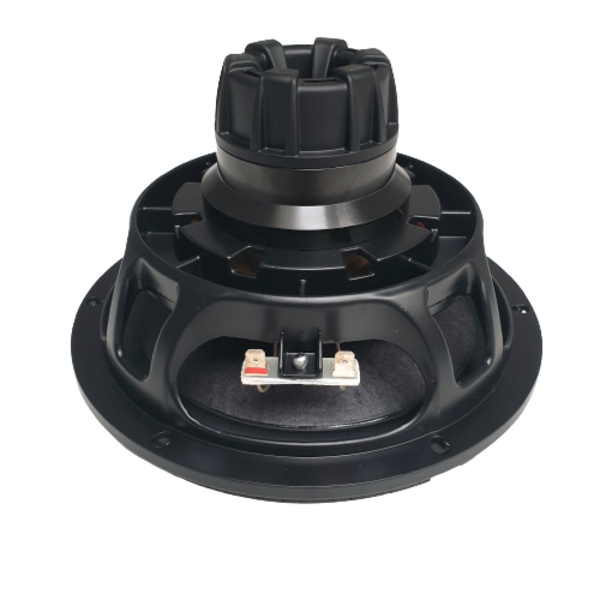

8NTLS2000
Drawing
Datasheet
compare
8Ω
8NTLS2000 8Ω
8.0
In
8NTLS2000
8NTLS2000
8.0
In
8Ω
8NTLS2000 8Ω
compare
Drawing
Datasheet
Technologies
TTC - Tetracoil Double Voice Coil
Specifications
Design
Parameters
Mounting and Shipping Info
Nominal Impedance
8 Ω
Minimum Impedance
5.9 Ω
Nominal Power Handling
1
350 W
Continuous Power Handling
2
700 W
Sensitivity
3
93.5 dB
Frequency Range
45 - 1200 Hz
Voice Coil Diameter
51 mm (2.0 in)
Winding Depth
19.0 mm (0.75 in)
Magnetic Gap Depth
8.5 mm (0.33 in)
Surround Shape
Single roll - Rubber
Cone Shape
Straight
Magnet Material
Neo
Recommended Enclosure
10.0 dm
3
(0.35 ft
3
)
Resonance Frequency
40 Hz
Re
5.4 Ω
Qes
0.19
Qms
11.8
Qts
0.19
Vas
27.5 dm
3
(0.97 ft
3
)
Sd
227.0 cm
2
(35.19 in
2
)
η₀
0.9 %
Xmax
7.4 mm
Xvar
8.0 mm
Mms
42.0 g
Bl
17.2 Txm
Le
0.69 mH
EBP
210 Hz
Overall Diameter
210 mm (8.27 in)
Bolt Circle Diameter
196 mm (7.74 in)
Baffle Cutout Diameter
186.0 mm (7.32 in)
Depth
121 mm (4.76 in)
Flange and Gasket Thickness
9 mm (0.35 in)
Net Weight
1.5 kg (3.31 lb)
Shipping Weight
1.9 kg (4.19 lb)
2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
