Maximum linearity and inductance symmetry for extended mid-band clarity
Ideal for two-ways and line array applications

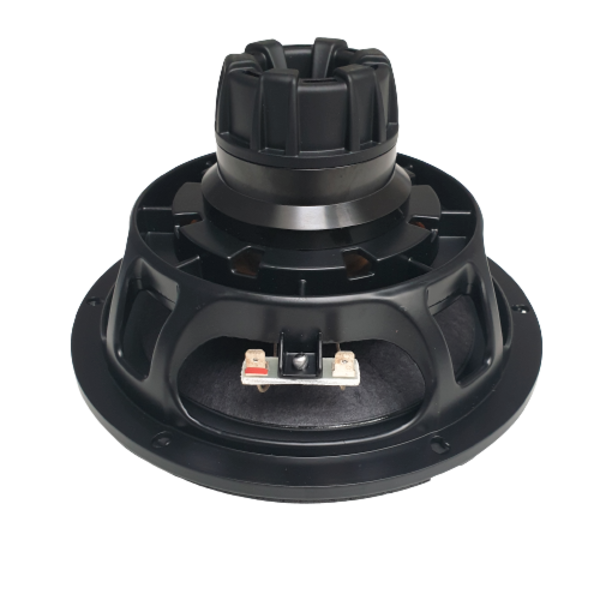

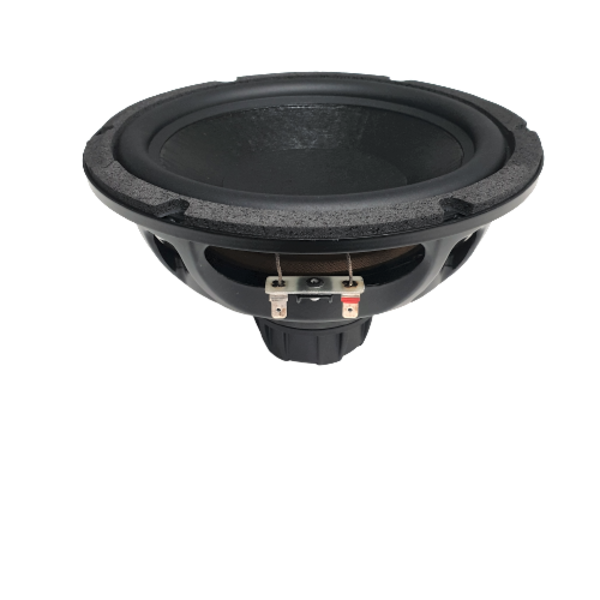

The 8NTLS2000 represents the latest 18sound technology for high quality, low distortion applications. The Tetracoil technology maximize benefits in terms of thermal dissipation and Bl symmetry, making the 8NTLS2000 the perfect component both as a woofer and a midbass. Dual gap motors linearize inductance and the perfect balance we reached between the motor and the ultra linear suspension allows both very high excursion and extreme precision in the mid band with the lowest intermodulation distortion in the professional market. This features, together with its extreme low weight make the 8NTLS2000 the perfect component for highest quality line arrays and two way systems, thanks also to its 700 watts power handling capabilities.
Specifications
Design
Parameters
Mounting and Shipping Info

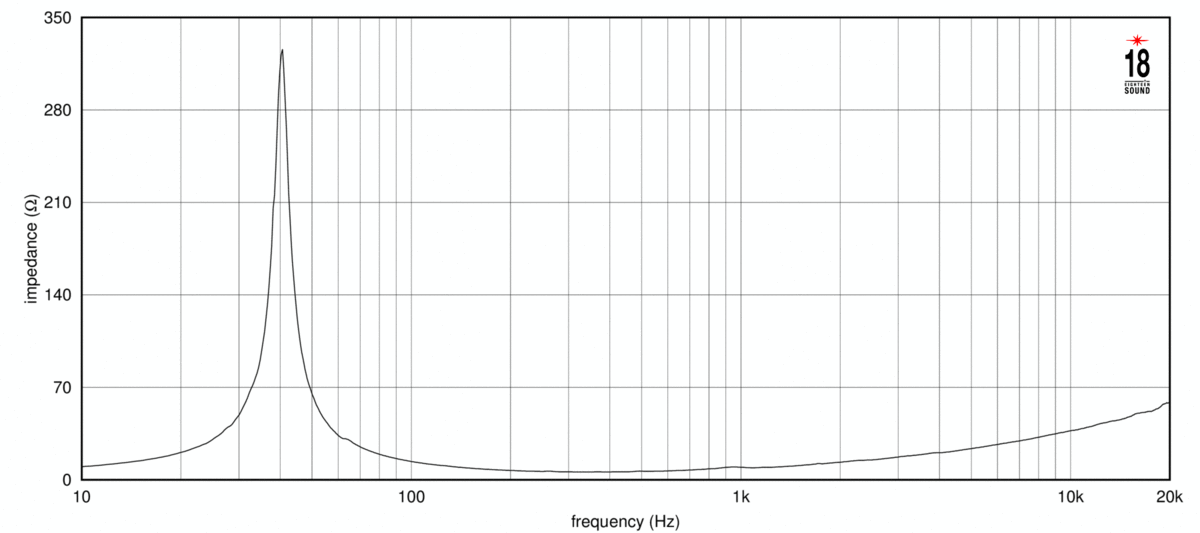

Nominal Impedance8 Ω
Minimum Impedance5.9 Ω
Nominal Power Handling1350 W
Continuous Power Handling2700 W
Sensitivity393.5 dB

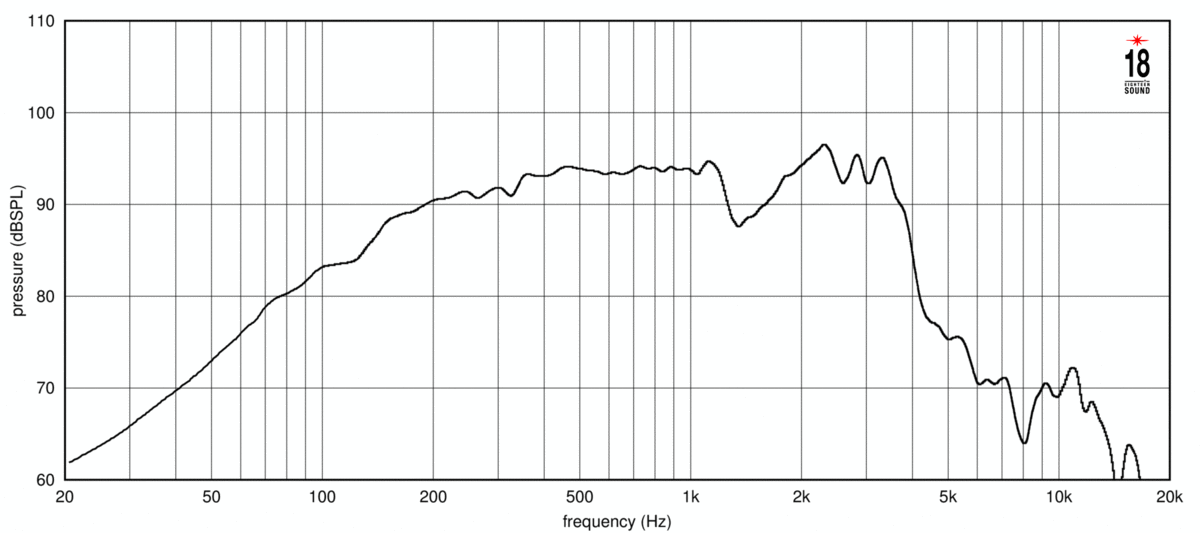

Frequency Range45 - 1200 Hz
Voice Coil Diameter51 mm (2.0 in)
Winding Materialaluminum
Winding Depth19.0 mm (0.75 in)
Magnetic Gap Depth8.5 mm (0.33 in)
Surround ShapeSingle roll - Rubber
Cone ShapeCurvilinear
Magnet MaterialNeo
Woofer Cone TreatmentWeather protected
Recommended Enclosure12.0 dm3 (0.42 ft3)
Recommended Tuning45 Hz
Resonance Frequency40 Hz
Re5.4 Ω
Qes0.19
Qms11.8
Qts0.19
Vas27.5 dm3 (0.97 ft3)
Sd227.0 cm2 (35.19 in2)
η₀0.9 %
Xmax7.4 mm
Xvar8.0 mm
Mms42.0 g
Bl17.2 Txm
Le0.69 mH
EBP210 Hz
Overall Diameter210 mm (8.27 in)
Bolt Circle Diameter196 mm (7.74 in)
Baffle Cutout Diameter186.0 mm (7.32 in)
Depth121 mm (4.76 in)
Flange and Gasket Thickness9 mm (0.35 in)
Net Weight1.5 kg (3.31 lb)
Shipping Weight1.9 kg (4.19 lb)
2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
