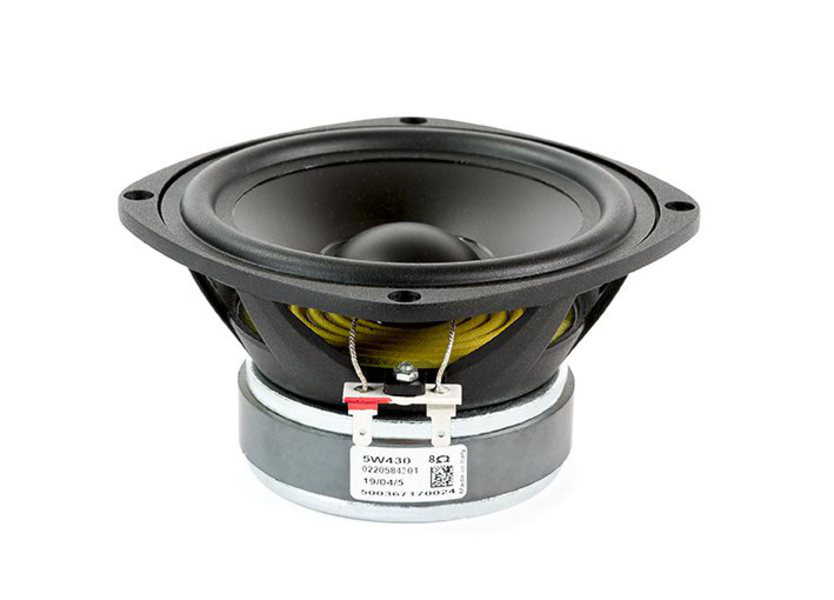

The 5W430 is a 5 inch woofer designed for low frequency reproduction in 2-way systems or multiway systems where high intelligibility is required. The speaker has been specifically designed for compact reflex enclosures. It is also currently used in line array or multiway systems with excellent results. The 25.4 mm ( one inch) voice coil is made from copper wire and assures linearity and consistent power handling. The polypropilene cone and half roll rubber suspension makes the transducer suitable for outdoor use in adverse weather conditions.
Specifications
Design
Parameters
Mounting and Shipping Info
Nominal Diameter125 mm ( in)

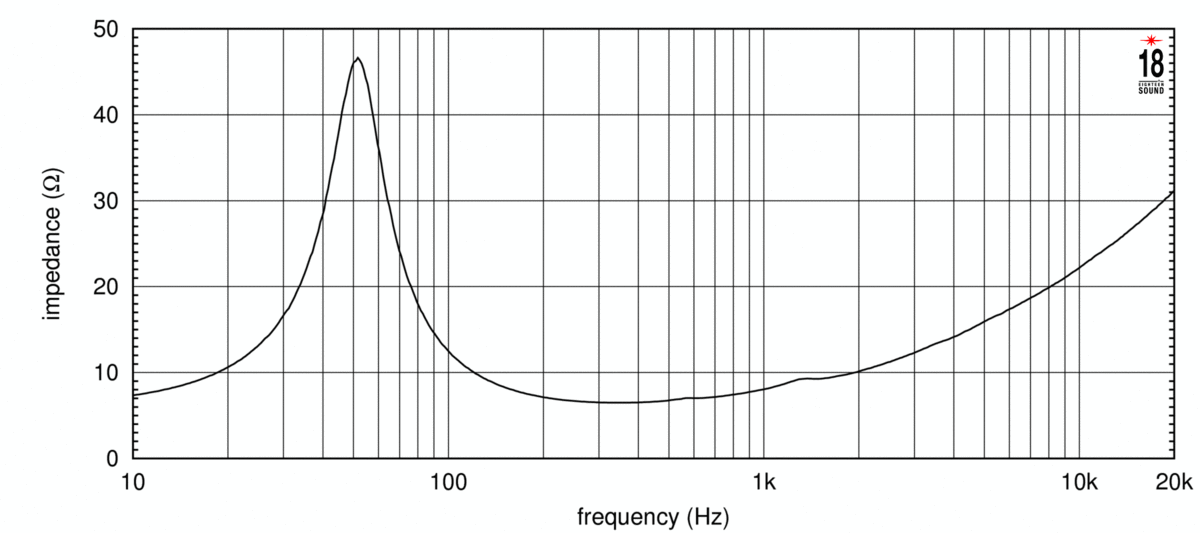

Nominal Impedance8 Ω
Nominal Power Handling180 W
Continuous Power Handling2120 W

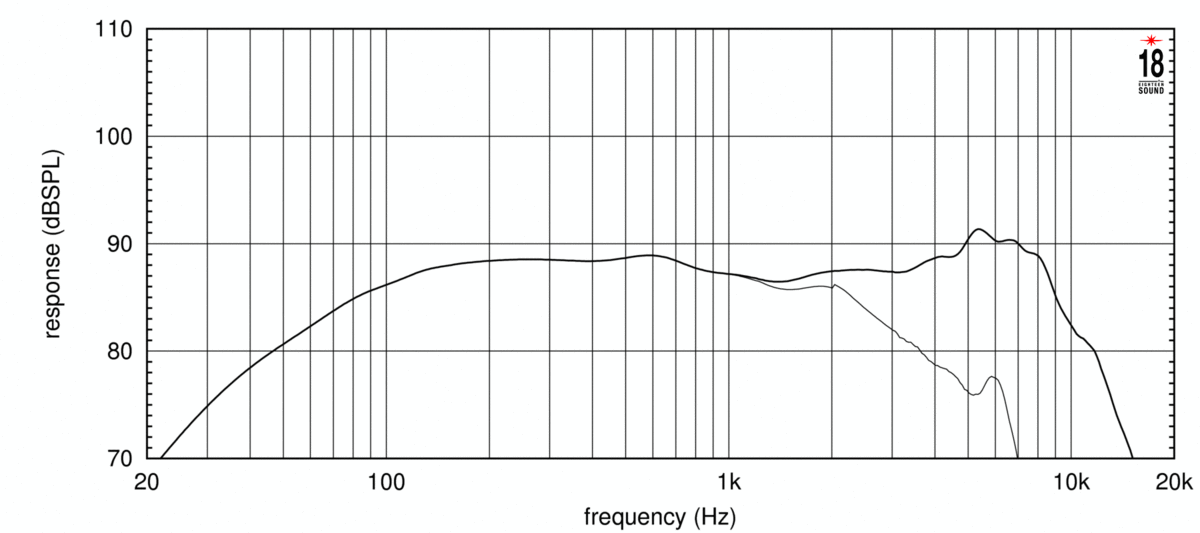

Sensitivity389.0 dB
Frequency Range60 - 8000 Hz
Voice Coil Diameter25 mm (1.0 in)
Winding Materialcopper
Surround ShapeHal roll - Rubber
Magnet MaterialFerrite
Resonance Frequency52 Hz
Re5.4 Ω
Qes0.36
Qms2.77
Qts0.32
Vas15.0 dm3 ( ft3)
Sd90.0 cm2 (13.95 in2)
Xmax6.0 mm
Mms8.2 g
Bl6.3 Txm
Le0.49 mH
EBP144 Hz

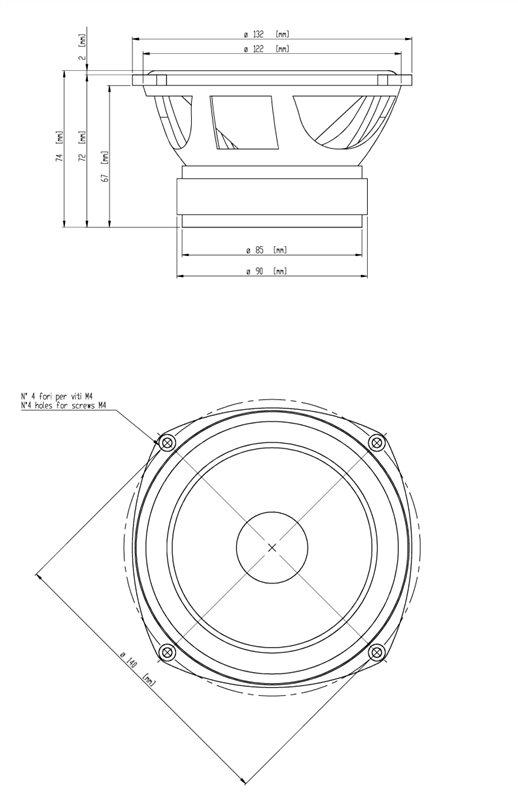

Overall Diameter134 mm (5.28 in)
Bolt Circle Diameter140 mm (5.51 in)
Baffle Cutout Diameter124.0 mm (4.88 in)
Depth72 mm (2.83 in)
Flange and Gasket Thickness4 mm (0.16 in)
Net Weight1.2 kg (2.65 lb)
Shipping Units12
Shipping Weight1.25 kg (2.76 lb)
2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
