Features

  • 99,5 dB SPL 1W / 1m average sensitivity
  • 100 mm (4 in) Interleaved Sandwich Voice coil (ISV)
  • 850 W AES power handling
  • Weather protected cone and plates for outdoor usage
  • Double Silicon Spider (DSS) for improved excursion control and linearity
  • Double Demodulating Rings (DDR) for lower distortion and improved heat dissipation
  • Improved heat dissipation via unique basket design

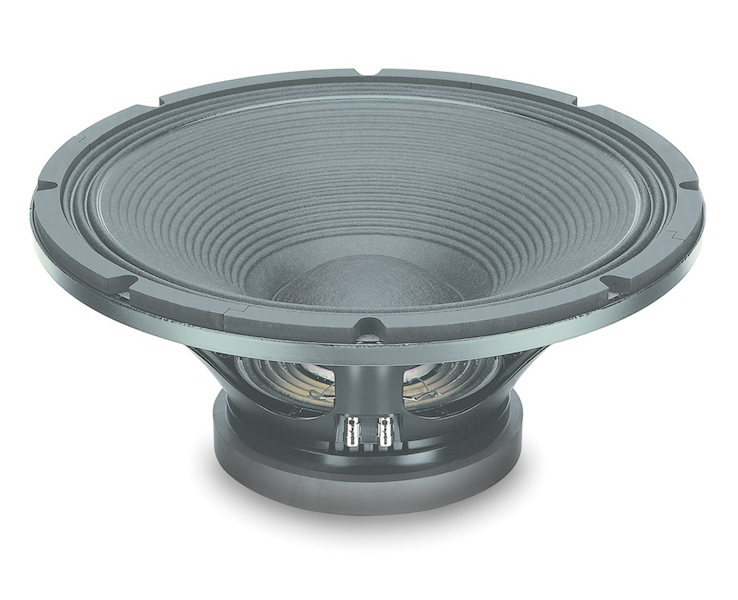

The 18W1300 is a low frequency loudspeaker which sets a new industry standard in 18" (460 mm) high output transducers. It represents a further development of the Eighteen Sound 18LW1400 but with a lighter mass and increased sensitivity.<br /> The 18W1300 can be used as a low bass or subwoofer component, in either a reflex, bandpass or horn loaded configuration, in high power fixed or touring loudspeaker systems. It provides clean, linear, undistorted low frequency reproduction at very high power levels. In its reflex configuration, it can also be used for bass musical<br /> instrument applications.<br /> The high excursion capabilities of the surround and suspension system, in conjunction with the Double Silicon Spider (DSS), enable the 18W1300 to achieve high levels of linear travel while maintaining full control over the moving mass.<br /> The carbon fiber reinforced curvilinear ribbed cone assures smooth response and exceptional strength with maximum reliability under high mechanical stress.<br /> The state-of-the-art voice coil employs our own Interleaved Sandwich Voice coil (ISV) technology, in which a high strength fiberglas former carries windings on both the outer and inner surfaces. This results in a balanced coil with a uniform distribution of mass and motive energy, creating an extremely linear motor assembly. The already low distortion and unmistakable sound quality of this loudspeaker is improved by Double Demodulating Rings (DDR), designed to dramatically reduce the intermodulation<br /> and harmonic distortion while improving the transient response.<br /> Excellent heat dissipation has been achieved by incorporating air channels between the basket and the magnetic top plate.<br /> Maximum flux concentration and force factor in the gap is assured by the unique shape and design of the top and back plates, which have been researched and designed using our in-house magnetic flux FEA CAD resource.<br /> Due to the increasing use of high power audio systems at outdoor events or in marine environments, the 18W1300 has been designed to perform properly under inclement weather conditions. This has been achieved using of an exclusive cone treatment which improves pulp strength and gives water repellent properties to both sides of<br /> the cone. In addition, a special treatment is applied to the top and back plates which is far more resistant to the corrosive effects of salts and oxidization than any other treatment in use.

Specifications

Design

Parameters

Mounting and Shipping Info

  • Nominal Diameter460 mm ( in)

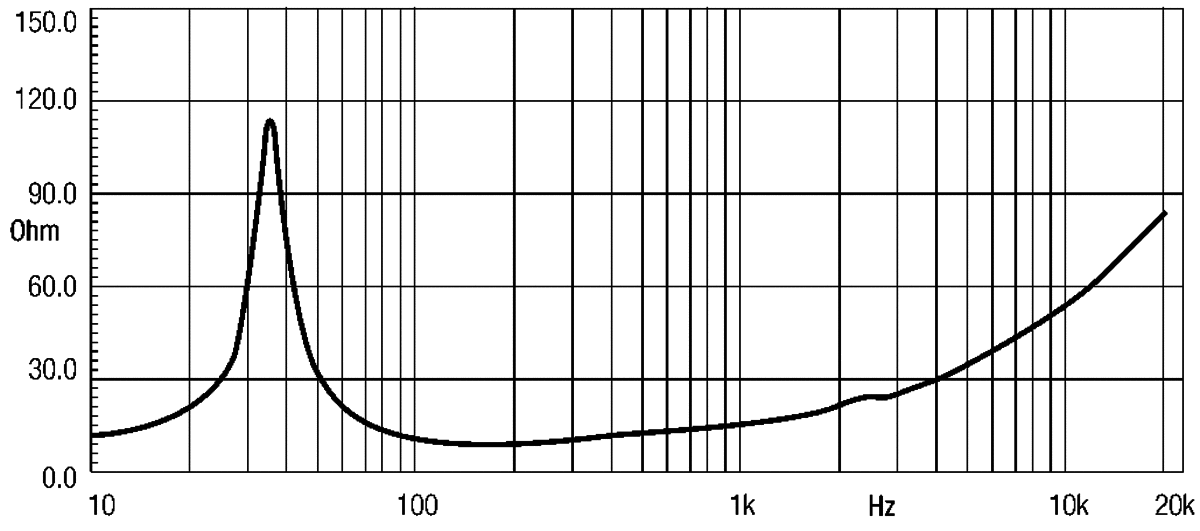

  • Nominal Impedance8 Ω
  • Nominal Power Handling1850 W
  • Continuous Power Handling21200 W

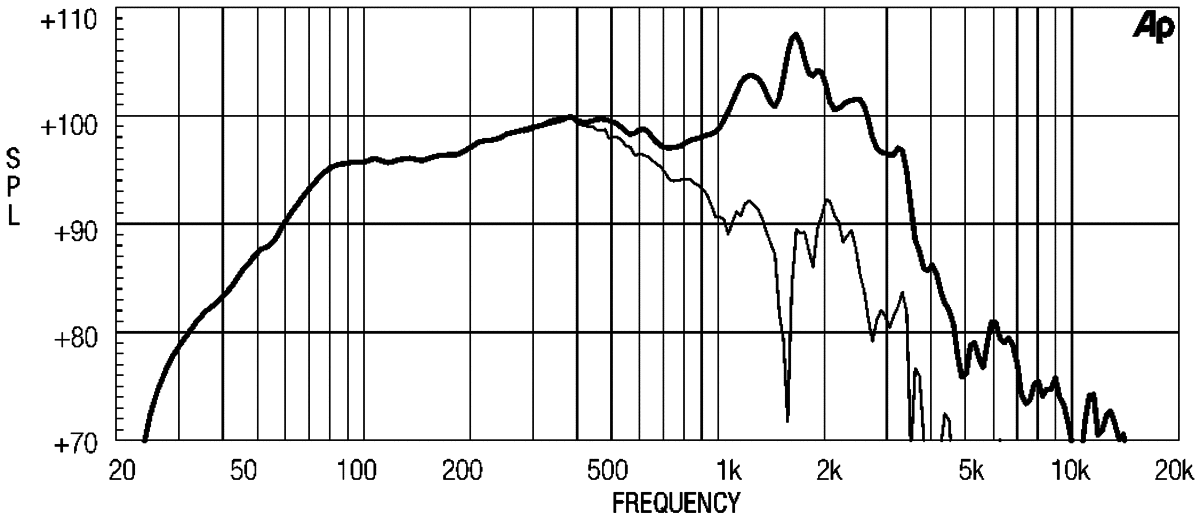

  • Sensitivity399.5 dB
  • Frequency Range38 - 3300 Hz
  • Voice Coil Diameter100 mm (4.0 in)
  • Winding Materialaluminum
  • Surround ShapeTriple roll
  • Cone ShapeCurvilinear
  • Magnet MaterialFerrite
  • SpiderDouble Silicon Spider
  • Woofer Cone TreatmentWeather protected
  • Recommended Enclosure200.0 dm3 (7.06 ft3)
  • Recommended Tuning38 Hz
  • Resonance Frequency35 Hz
  • Re5.0 Ω
  • Qes0.35
  • Qms5.0
  • Qts0.33
  • Vas336.0 dm3 (11.87 ft3)
  • Sd1225.0 cm2 (189.88 in2)
  • Xmax8.5 mm
  • Mms129.0 g
  • Bl20.4 Txm
  • Le1.48 mH
  • EBP100 Hz

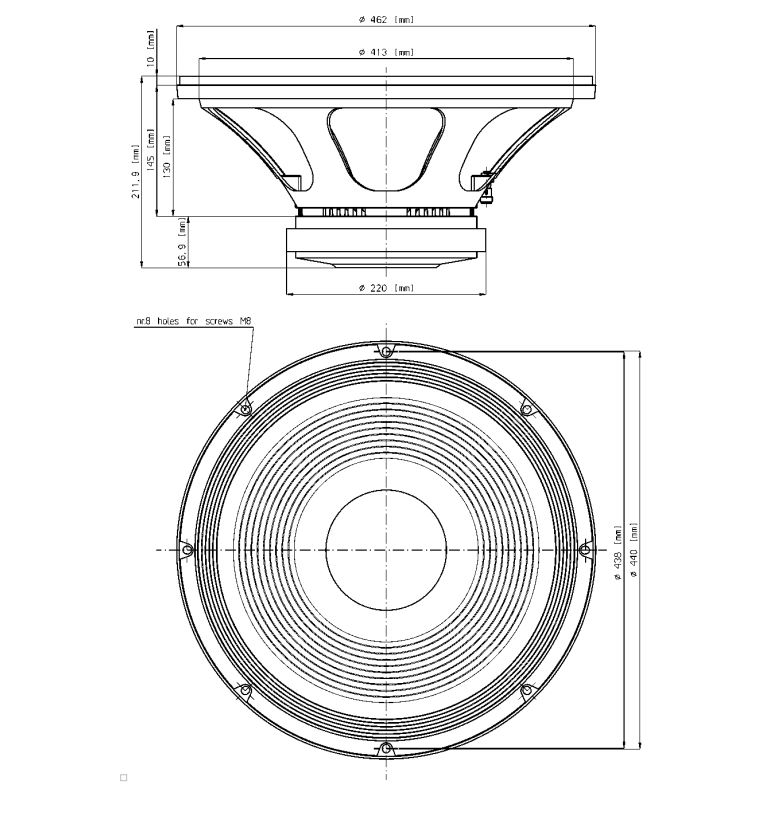

  • Overall Diameter462 mm (18.19 in)
  • Bolt Circle Diameter438 mm (17.24 in)
  • Baffle Cutout Diameter416.0 mm (16.38 in)
  • Depth211 mm (8.31 in)
  • Flange and Gasket Thickness26 mm (1.02 in)
  • Net Weight13.0 kg (28.66 lb)
  • Shipping Weight14.4 kg (31.75 lb)
  • Shipping Box482 x 482 x 257 mm (18.98x18.98x10.12 in)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
