Home
Products
LF drivers

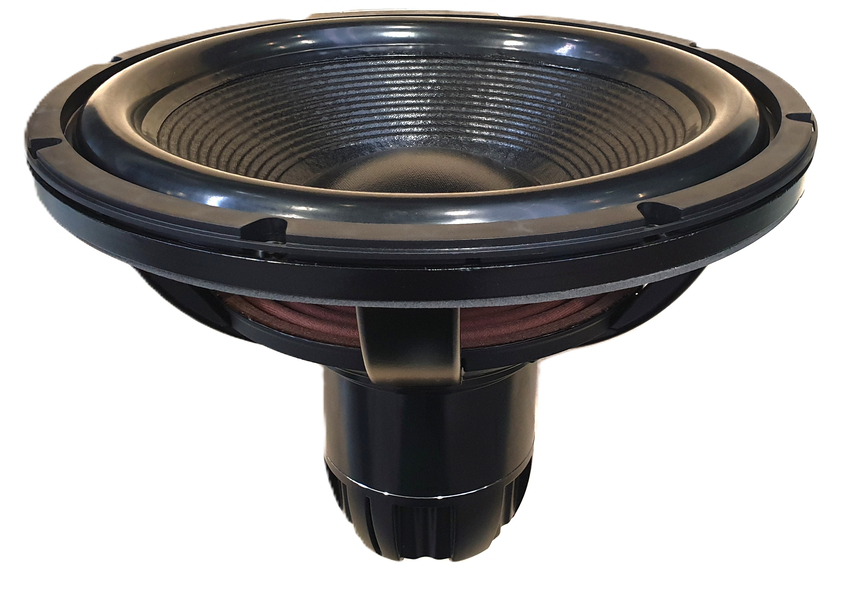

18NTLS5000
Drawing
Datasheet
compare
4Ω
18NTLS5000 4Ω
18.0
In
18NTLS5000
18NTLS5000
18.0
In
4Ω
18NTLS5000 4Ω
compare
Drawing
Datasheet
Technologies
DSS - Double Silicon Spider
ISV - Interleaved Sandwich Voice Coil
TTC - Tetracoil Double Voice Coil
Specifications
Design
Parameters
Mounting and Shipping Info
Nominal Impedance
4 Ω
Minimum Impedance
3.6 Ω
Nominal Power Handling
1
1800 W
Continuous Power Handling
2
3600 W
Sensitivity
3
89.0 dB

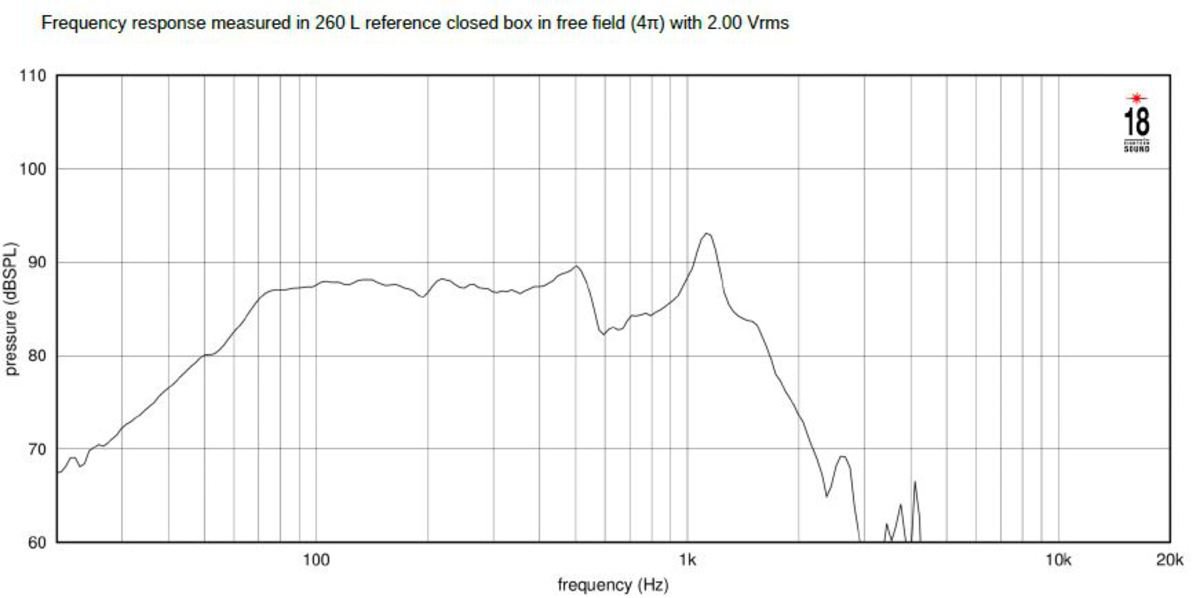

Frequency Range
35 - 4000 Hz
Voice Coil Diameter
115 mm (4.5 in)
Winding Depth
43.0 mm (1.69 in)
Magnetic Gap Depth
15.0 mm (0.59 in)
Recommended Enclosure
120.0 dm
3
(4.24 ft
3
)
Recommended Tuning
40 Hz
Resonance Frequency
37 Hz
Re
2.7 Ω
Qes
0.35
Qms
8.4
Qts
0.33
Vas
75.0 dm
3
(2.65 ft
3
)
Sd
1225.0 cm
2
(189.88 in
2
)
η₀
1.1 %
Xmax
17.75 mm
Xvar
19.0 mm
Mms
510.0 g
Bl
30.7 Txm
Le
2.0 mH
EBP
105 Hz

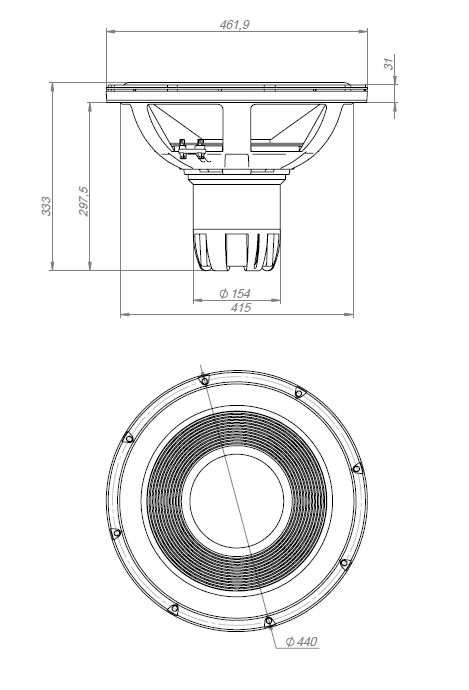

Overall Diameter
462 mm (18.19 in)
Bolt Circle Diameter
440 mm (17.32 in)
Baffle Cutout Diameter
417.0 mm (16.42 in)
Depth
330 mm (13.0 in)
Flange and Gasket Thickness
31 mm (1.22 in)
Net Weight
13.6 kg (29.98 lb)
Shipping Weight
14.5 kg (31.97 lb)
2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
