Home
Products
LF drivers
18NLS4000

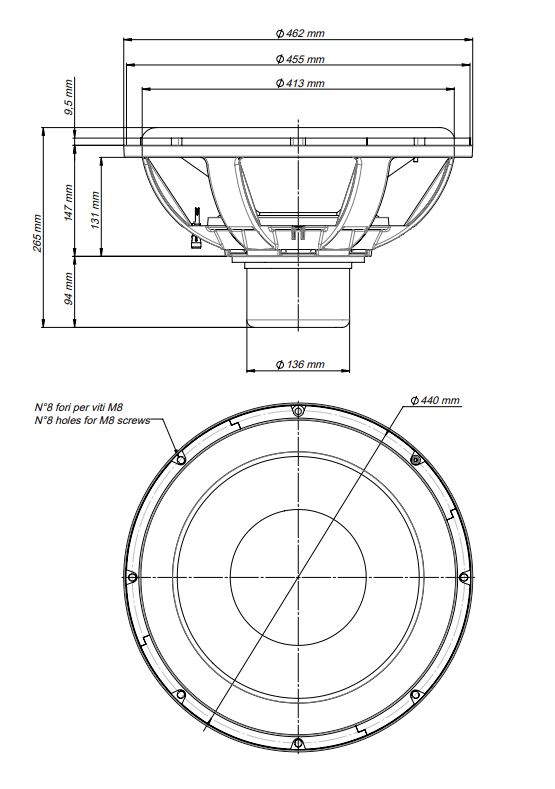

Drawing
Datasheet
compare
4Ω
18NLS4000 4Ω
18.0
In
18NLS4000
18NLS4000
18.0
In
4Ω
18NLS4000 4Ω
compare
Drawing
Datasheet
Features
Technologies
ISV - Interleaved Sandwich Voice Coil
SDR - Single Demodulating Ring
Specifications
Design
Parameters
Mounting and Shipping Info
Nominal Impedance
4 Ω
Minimum Impedance
3.5 Ω
Nominal Power Handling
1
1200 W
Continuous Power Handling
2
2400 W
Sensitivity
3
88.0 dB
Frequency Range
28 - 500 Hz
Voice Coil Diameter
100 mm (4.0 in)
Winding Depth
52.0 mm (2.05 in)
Magnetic Gap Depth
15.0 mm (0.59 in)
Surround Shape
Single roll - High quality foam
Cone Shape
Straight
Magnet Material
Neo
Woofer Cone Treatment
Reinforced, water repellent, treated paper
Recommended Enclosure
100.0 dm
3
(3.53 ft
3
)
Recommended Tuning
28 Hz
Resonance Frequency
27 Hz
Re
2.9 Ω
Qes
0.36
Qms
13.7
Qts
0.35
Vas
168.0 dm
3
(5.93 ft
3
)
Sd
1225.0 cm
2
(189.88 in
2
)
η₀
0.9 %
Xmax
22.3 mm
Xvar
25.0 mm
Mms
433.0 g
Bl
24.2 Txm
Le
2.6 mH
EBP
75 Hz
Overall Diameter
462 mm (18.19 in)
Bolt Circle Diameter
439 mm (17.28 in)
Baffle Cutout Diameter
420.0 mm (16.54 in)
Depth
250 mm (9.84 in)
Flange and Gasket Thickness
24 mm (0.94 in)
Net Weight
12.0 kg (26.46 lb)
Shipping Weight
12.8 kg (28.22 lb)
2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
