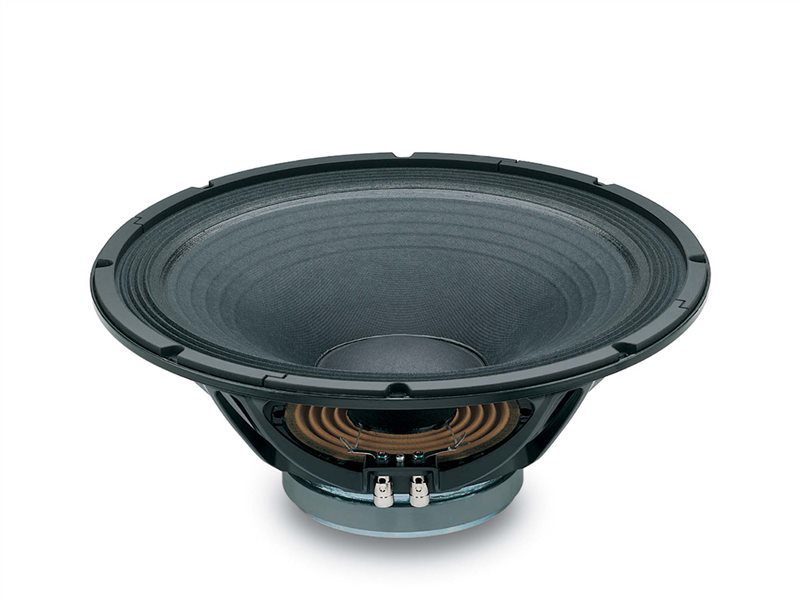

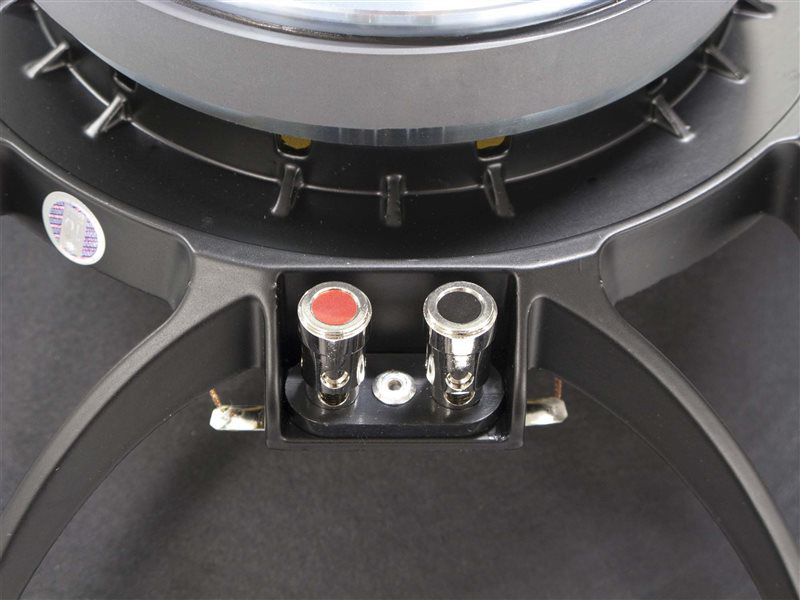

The 15W500 is a fine example of a high quality transducer providing the right balance between performance and engineering costs. This ferrite low frequency driver satisfies the demand for a 15" loudspeaker which combines excellent linearity with good sensitivity and power handling characteristics. The 15W500 has been designed for two-way or multi-way reflex systems. The high quality paper cone has a smooth, Eighteen Sound specified curvilinear textured profile design that eliminates bell-mode resonance within the intended frequency range. The cone is carried by a specially treated and dampened multi-roll linen suspension designed to control excursion while maintaining piston action linearity. The 15W500 also employs our Interleaved Sandwich Voice coil (ISV) technology, in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard. Voice coil cooling has been achieved by incorporating airways between the chassis back plate and the magnetic top plate, allowing heated air from the voice coil and gap to be channeled away and dissipated by the chassis basket. This technology is the result of a meticulous 3D CAD design project.
Specifications
Design
Parameters
Mounting and Shipping Info
Nominal Diameter380 mm ( in)
Nominal Impedance8 Ω
Minimum Impedance6.0 Ω
Nominal Power Handling1350 W
Continuous Power Handling2500 W

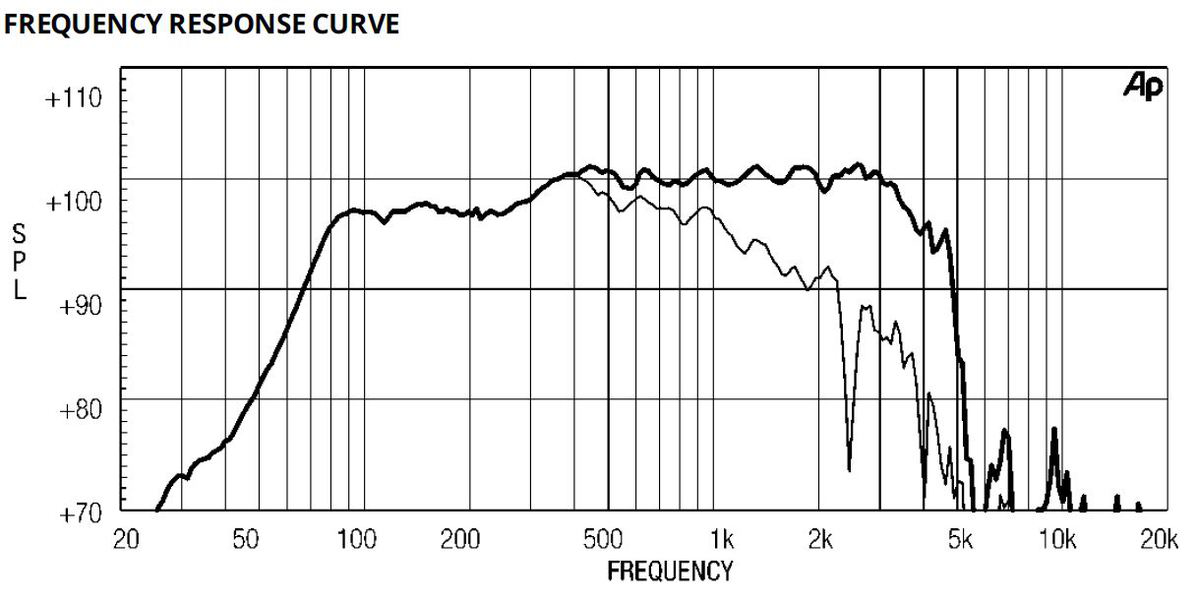

Sensitivity3100.5 dB
Frequency Range50 - 4500 Hz
Voice Coil Diameter65 mm (2.5 in)
Winding Materialaluminum
Surround ShapeM-roll
Cone ShapeCurvilinear
Magnet MaterialFerrite
Recommended Enclosure140.0 dm3 (4.94 ft3)
Recommended Tuning52 Hz

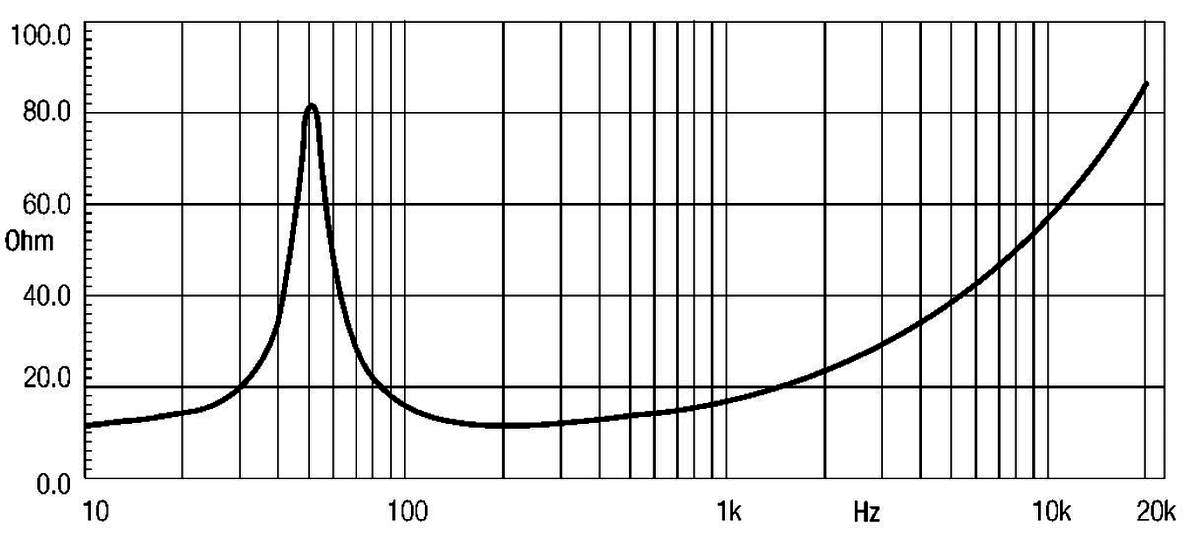

Resonance Frequency50 Hz
Re5.2 Ω
Qes0.55
Qms9.64
Qts0.52
Vas189.0 dm3 (6.67 ft3)
Sd850.0 cm2 (131.75 in2)
Xmax4.0 mm
Mms55.0 g
Bl12.6 Txm
Le1.04 mH
EBP90 Hz
Overall Diameter387 mm (15.24 in)
Bolt Circle Diameter370 mm (14.57 in)
Baffle Cutout Diameter353.0 mm (13.9 in)
Depth161 mm (6.34 in)
Flange and Gasket Thickness11 mm (0.43 in)
Net Weight4.3 kg (9.48 lb)
Shipping Weight5.1 kg (11.24 lb)
Shipping Box405 x 405 x 214 mm (15.94x15.94x8.43 in)
2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
