Alternative/Current Model:
12W750

Features

  • 98 dB SPL 1W / 1m average sensitivity
  • 75 mm (3 in) Interleaved Sandwich Voice coil (ISV)
  • 500 W AES power handling
  • External neodymium magnet assembly
  • Double Demodulating Rings (DDR) for lower distortion
  • Humidity resistant cone
  • Ideal for 2 way systems and compact high loading subwoofer applications

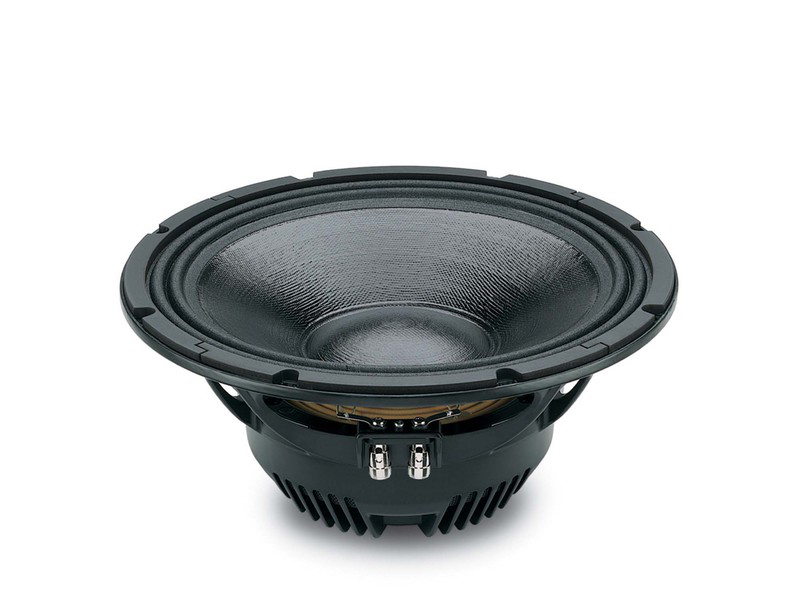

The 12ND930 is a high power, high output, low frequency woofer meeting the most stringent requirements in high quality professional transducers. The high level of performance and sound quality have been achieved by exploiting the most advanced technologies available today. Thanks to its versatility, the 12ND930 can be used in two-way compact reflex enclosures with a 1.4" compression driver, in multi-way systems and in high loading sub woofers as small as 50 lt (compact reflex, band-pass and hornloaded configurations). The neodymium magnet assembly assures high flux concentration, low power compression and excellent heat exchange, since the external magnet configuration is considerably more efficient than traditional under-pole magnet topology. This results in high levels of force factor and power handling with an optimum power to weight ratio. The direct contact between the large heat sink and the basket, together with the magnetic structure, represents a fundamental improvement in thermal connection and heat dissipation. The result is increased power handling capabilities and lower power compression. The curvilinear cone profile, created with a special high strength wood pulp, has been designed to achieve the best possible linearity within its frequency range. The cone surround in linen material is highly resistant to aging and fatigue. The in-house developed cone treatment is a humidity repellent and significant dampens bell mode resonance. The 12ND930 employs our Interleaved Sandwich Voice coil (ISV) in which a high strength fiberfiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil. The final result is an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard. The already low distortion and sound quality are further improved by Double Demodulating Rings (DDR), that flatten impedance and phase figures with a constant power transfer. A special coating applied to both the top and back plates makes the 12ND930 far more resistant to the corrosive effects of salts and oxidization.

Specifications

Design

Parameters

Mounting and Shipping Info

  • Nominal Diameter300 mm ( in)
  • Nominal Impedance8 Ω
  • Minimum Impedance6.4 Ω
  • Nominal Power Handling1500 W
  • Continuous Power Handling2800 W
  • Sensitivity398.0 dB

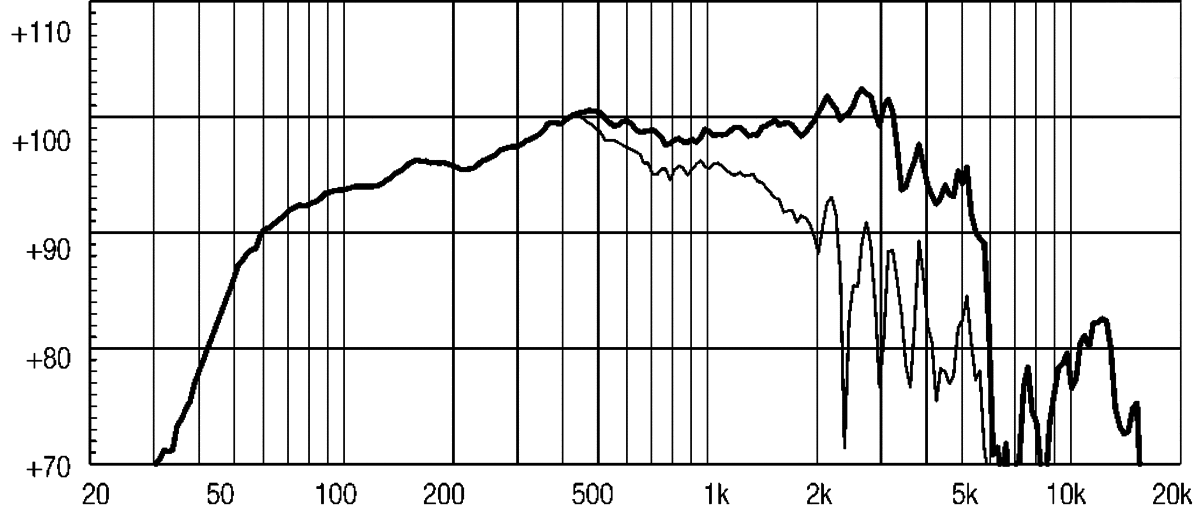

  • Frequency Range46 - 4500 Hz
  • Voice Coil Diameter75 mm (3.0 in)
  • Winding Materialcopper
  • Surround ShapeM-roll
  • Cone ShapeCurvilinear
  • Magnet MaterialNeo
  • Recommended Enclosure70.0 dm3 (2.47 ft3)
  • Recommended Tuning52 Hz
  • Resonance Frequency50 Hz
  • Re5.5 Ω
  • Qes0.22
  • Qms5.64
  • Qts0.21
  • Vas70.0 dm3 (2.47 ft3)
  • Sd531.0 cm2 (82.31 in2)
  • Xmax6.5 mm
  • Mms57.0 g
  • Bl21.2 Txm
  • Le1.65 mH
  • EBP227 Hz
  • Overall Diameter315 mm (12.4 in)
  • Bolt Circle Diameter296 mm (11.65 in)
  • Baffle Cutout Diameter282.0 mm (11.1 in)
  • Depth140 mm (5.51 in)
  • Flange and Gasket Thickness11 mm (0.43 in)
  • Net Weight4.4 kg (9.7 lb)
  • Shipping Weight5.1 kg ( lb)
  • Shipping Box332 x 332 x 184 mm (13.07x13.07x7.24 in)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
