01_26_13_355_12lw1400
Alternative/Current Model:
12NLW9300

Features

  • 96 dB SPL 1W / 1m average sensitivity
  • 100 mm (4 in) Interleaved Sandwich Voice coil (ISV)
  • 900 W AES power handling
  • Double Silicon Spider (DSS) for improved excursion control and linearity
  • Double Demodulating Ring (DDR) for lower distortion
  • Improved heat dissipation via unique basket design
  • Weather protected cone and plates for outdoor usage
  • Specially designed for high loading compact subwoofers

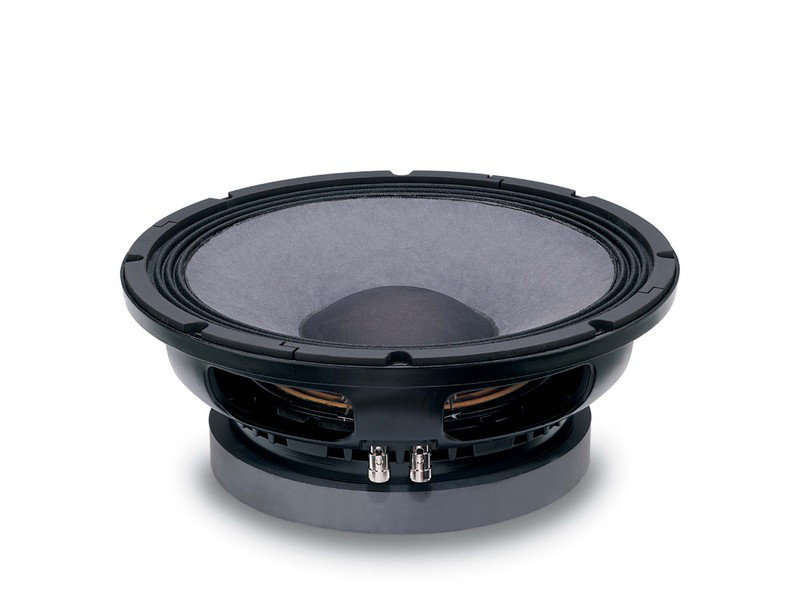

The 12LW1400 is an extended low frequency loudspeaker which sets a new industry standard in 12" (300 mm) 4" voice coil high performance transducers, already accomplished by the 15LW1400 and 18LW1400 respectively. The transducer has been designed for subwoofer or low frequency component usage in multi-way systems where considerable amounts of power and low distortion are needed. 12LW1400 is ideally suited for very high loading cabinets, such as bandpass, horn loaded or compact reflex configurations. In its reflex configuration, 12LW1400 can be used in extremely compact enclosures (30 - 60 lt), making it the ideal choice for touring applications, sound reinforcement or fixed installations, including indoor and outdoor concert reinforcement systems. Maximum strength, smooth response and high displacement piston motion are obtained using Double Silicon Spider technology (DSS) and a large excursion surround. A special formulation cone material has been used to enable it to withstand high loading and high power peaks. The suspension system has been designed to give symmetric large signal behavior across the whole working range, providing low harmonic distortion at different excitation levels. An inside outside aluminum voice coil, based on Interleaved Sandwich Voice coil (ISV) provides high levels of thermal stability and durability. The ISV technology is based on a high strength fiberglas former with half the coil wound on the outside and half on the inside ensuring uniform thermal dissipation on both sides. It is bonded together using unique high temperature resin adhesive to achieve a balanced and solid linear motor unit. Double Demodulation Rings (DDR) technology dramatically reduces the intermodulation and harmonic distortion whilst improving the transient response. The top plate and back plate design have been optimized for cone excursion and maximum symmetric force factor by the use of in-house FEA Magnetic simulation software. Furthermore, excellent heat dissipation has been achieved by the special basket design which incorporates air channels between the basket and magnetic top plate. The 12LW1400 exclusive cone treatment improves pulp strength and gives water repellent properties to both sides of the cone. In addition, the special coating of both the top and back plates makes them far more resistant to the corrosive effects of salts and oxidization than standard zinc-coated treatment.

Specifications

Design

Parameters

Mounting and Shipping Info

  • Nominal Diameter300 mm ( in)

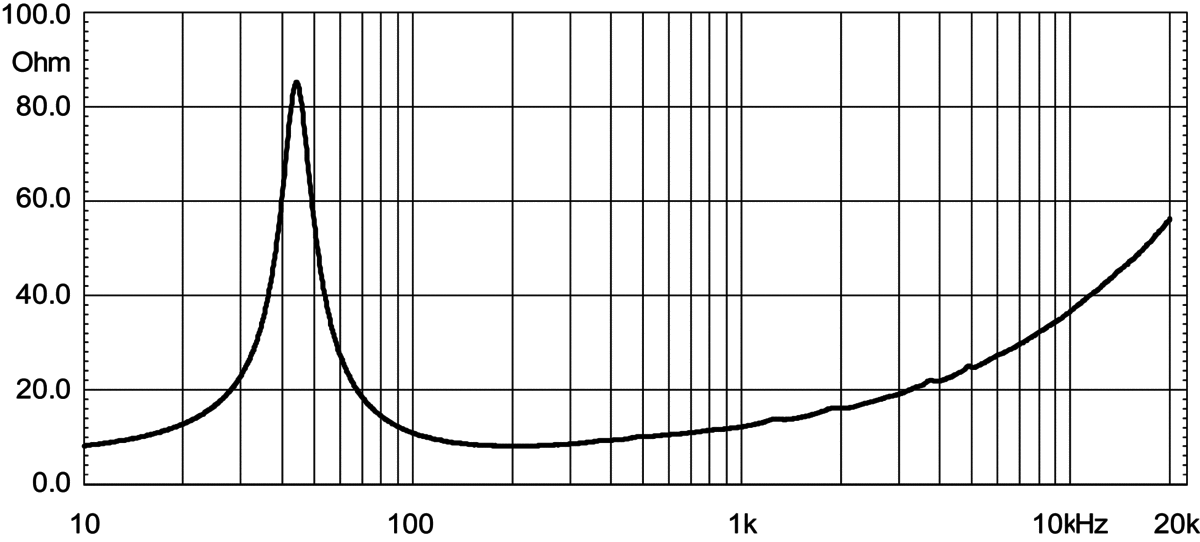

  • Nominal Impedance8 Ω
  • Minimum Impedance6.8 Ω
  • Nominal Power Handling1900 W
  • Continuous Power Handling21400 W

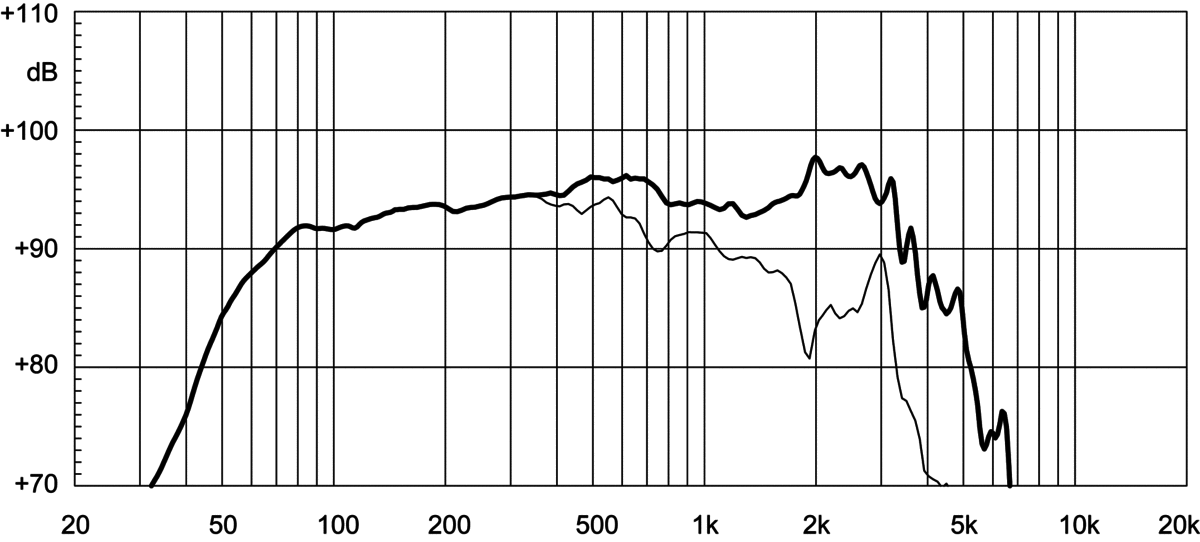

  • Sensitivity396.0 dB
  • Frequency Range51 - 4000 Hz
  • Voice Coil Diameter100 mm (4.0 in)
  • Winding Materialaluminum
  • Surround ShapeTriple roll
  • Cone ShapeStraight
  • Magnet MaterialFerrite
  • Woofer Cone TreatmentWeather protected
  • Recommended Enclosure50.0 dm3 (1.77 ft3)
  • Recommended Tuning47 Hz
  • Resonance Frequency45 Hz
  • Re5.2 Ω
  • Qes0.32
  • Qms5.0
  • Qts0.3
  • Vas55.0 dm3 (1.94 ft3)
  • Sd531.0 cm2 (82.31 in2)
  • Xmax8.25 mm
  • Mms88.0 g
  • Bl20.0 Txm
  • Le1.5 mH
  • EBP140 Hz

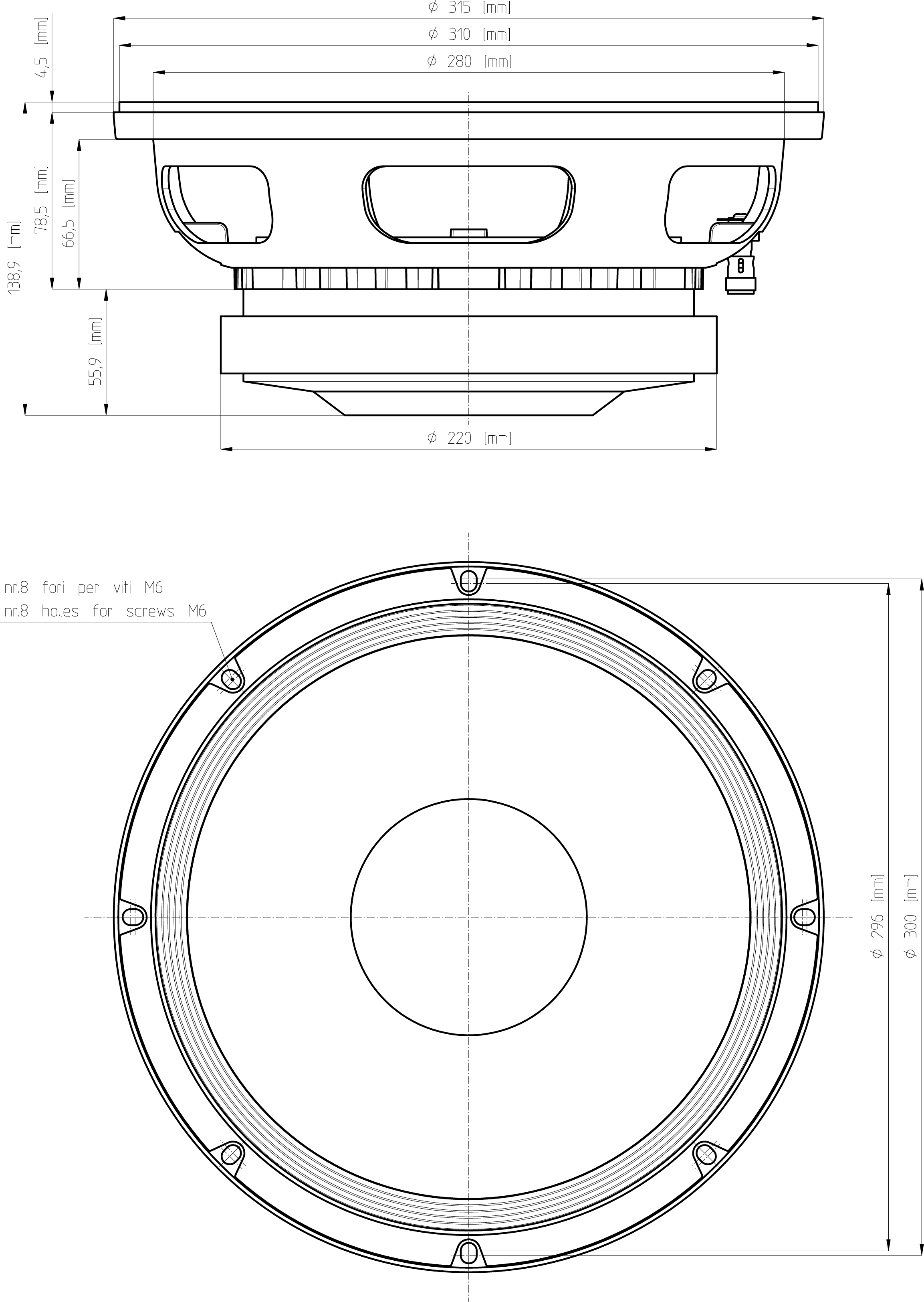

  • Overall Diameter315 mm (12.4 in)
  • Bolt Circle Diameter296 mm (11.65 in)
  • Baffle Cutout Diameter282.0 mm (11.1 in)
  • Depth141 mm (5.55 in)
  • Flange and Gasket Thickness17 mm (0.67 in)
  • Net Weight10.9 kg (24.03 lb)
  • Shipping Weight11.4 kg (25.13 lb)
  • Shipping Box332 x 332 x 184 mm (13.07x13.07x7.24 in)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
