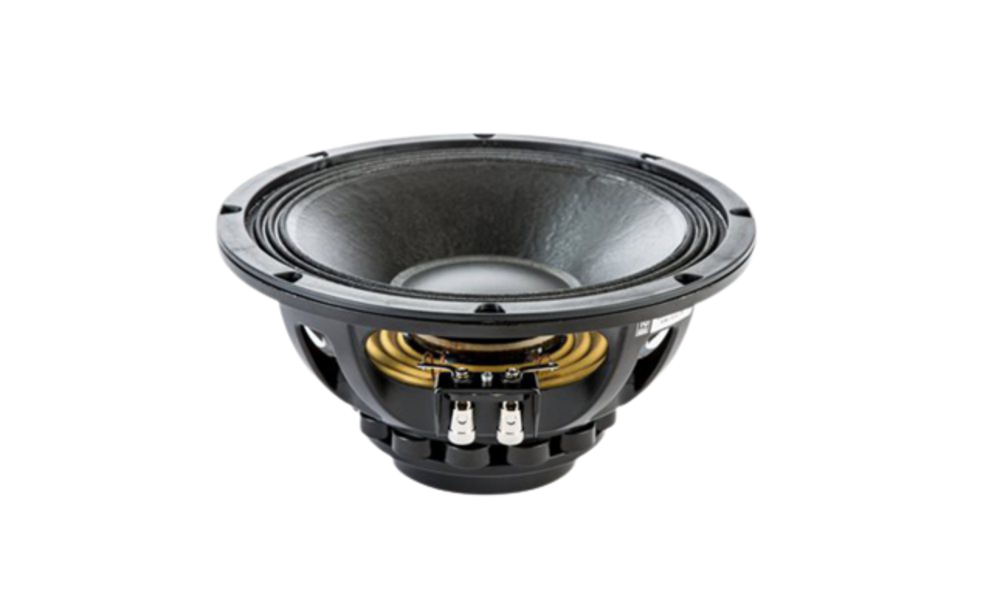

21_14_19_470_10nw750_removebg_preview

Features

  • 94 dB SPL 1W@1m average sensitivity
  • 900 W program power handling
  • 75 mm (3 in) Interleaved Sandwich Aluminum Voice Coil (ISV)
  • External Neodymium magnet assembly
  • Single Demodulating Ring (SDR) for lower distortion and maximum sound clarity
  • Weather protected cone and coated plates
  • Suitable for high performance line arrays and compact two-way systems

18 Sound’s 10NW750 neodymium low frequency transducer is a state-of-the-art 10-inch woofer that combines excellent linearity with high power handling capabilities (900 W) and reduced power compression. The external neodymium magnet assembly assures high flux concentration and excellent heat exchange. The 75mm (3 in) inside outside aluminum voice coil employs Interleaved Sandwich Voice coil (ISV) technology.
A sophisticated distortion reduction system has been implemented using a demodulating ring for flux modulation cancellation related to voice coil excursion, together with a copper ring for the reduction of intermodulation distortion.
The cone is treated against extremely aggressive environment conditions.
The compact size makes the 10NW750 an ideal choice for high performance line arrays and compact two-way systems.

Specifications

Design

Parameters

Mounting and Shipping Info

  • Nominal Diameter260 mm ( in)
  • Nominal Impedance16 Ω
  • Minimum Impedance11.5 Ω
  • Nominal Power Handling1450 W
  • Continuous Power Handling2900 W
  • Sensitivity394.0 dB
  • Frequency Range50 - 5000 Hz
  • Voice Coil Diameter75 mm (3.0 in)
  • Magnet MaterialNeo
  • Recommended Enclosure25.0 dm3 (0.88 ft3)
  • Recommended Tuning60 Hz
  • Resonance Frequency52 Hz
  • Re11.0 Ω
  • Qes0.4
  • Qms4.36
  • Qts0.36
  • Vas38.0 dm3 (1.34 ft3)
  • Sd346.0 cm2 (53.63 in2)
  • Xmax7.1 mm
  • Mms42.0 g
  • Bl20.0 Txm
  • Le0.9 mH
  • EBP130 Hz

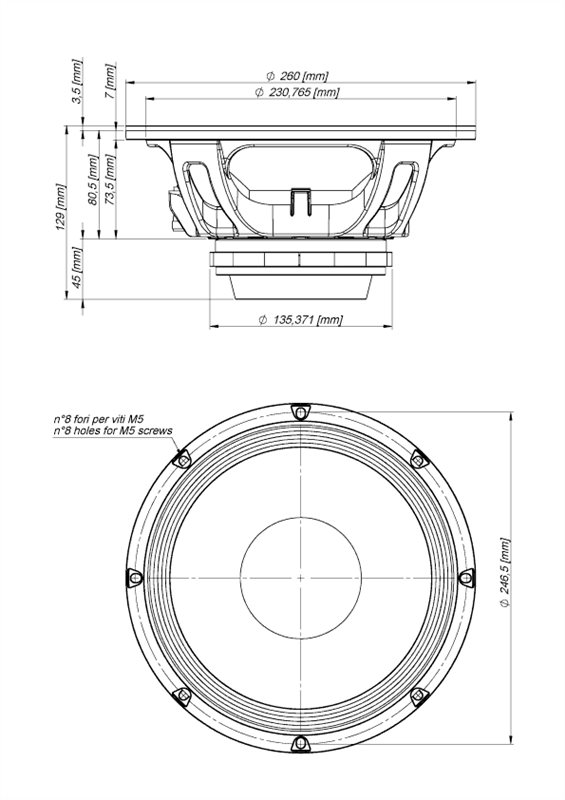

  • Overall Diameter260 mm (10.24 in)
  • Bolt Circle Diameter244 mm (9.61 in)
  • Baffle Cutout Diameter232.0 mm (9.13 in)
  • Depth130 mm (5.12 in)
  • Flange and Gasket Thickness11 mm (0.43 in)
  • Net Weight3.8 kg (8.38 lb)
  • Shipping Weight4.3 kg (9.48 lb)
  • Shipping Box275x275x164 mm (10.83x10.83x6.46 in)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
