00_31_00_987_74_0d45b
Alternative/Current Model:
10NMB420

Features

  • 99 dB SPL 1W/1m average sensitivity
  • 65 mm (2,5 in) Interleaved Sandwich Voice coil (ISV)
  • 600 W program power handling
  • High grade external neodymium motor assembly
  • Flux stabilizer ring to linearize impedance curve
  • Humidity resistant cone

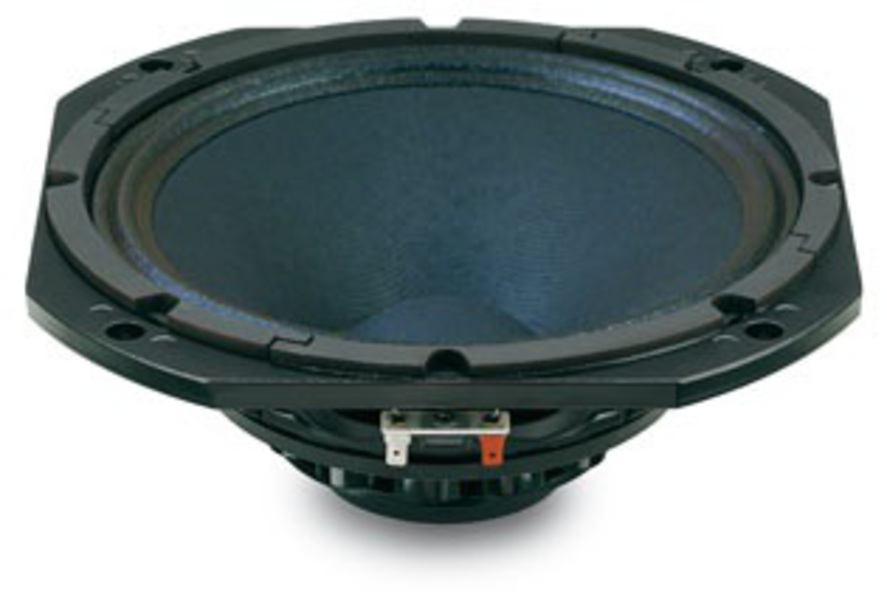

The 10NMB520 is a 10" mid-bass transducer created for compact reflex 2-way enclosures. It can be coupled with 1" compression drivers and it can also be used in mid-low sections on modern line-array systems.<br /> Its features and design characteristics make it extremely defined in mid-range frequencies, offering a significant and consistent bottom-end. This also makes it suitable for monitoring applications.<br /> The extremely powerful external neodymium magnet assembly assures high flux concentration, low power compression and excellent heat exchange. The overall result is the best power to weight ratio available on the market today.<br /> The curvilinear cone, specified with a high damping wood pulp has been designed to achieve the best possible linearity within its frequency range. The in-house developed cone treatment is a humidity repellent and significantly dampens bell-mode resonances.<br /> The 65mm edge-wound voice coil assembly is wound on a strong fiberglas former in order to improve force transmission and power handling.<br /> A proprietary humidity-block cone treatment makes the transducer suitable for outdoor use in adverse weather conditions. In addition, a special coating applied to both the top and back plates makes the 10NMB520B far more resistant to the corrosive effects of salts and oxidization.

Specifications

Design

Parameters

Mounting and Shipping Info

  • Nominal Diameter260 mm ( in)
  • Nominal Impedance16 Ω
  • Nominal Power Handling1300 W
  • Continuous Power Handling2600 W
  • Sensitivity3100.0 dB
  • Frequency Range60 - 5000 Hz
  • Voice Coil Diameter64 mm (2.5 in)
  • Winding Materialaluminum
  • Surround ShapeDouble roll
  • Cone ShapeCurvilinear
  • Magnet MaterialNeo
  • Woofer Cone TreatmentWeather protected
  • Recommended Enclosure24.0 dm3 (0.85 ft3)
  • Recommended Tuning70 Hz
  • Resonance Frequency64 Hz
  • Re11.7 Ω
  • Qes0.36
  • Qms4.0
  • Qts0.33
  • Vas43.0 dm3 (1.52 ft3)
  • Sd340.0 cm2 (52.7 in2)
  • Xmax4.0 mm
  • Mms23.0 g
  • Bl17.5 Txm
  • Le0.33 mH
  • EBP177 Hz

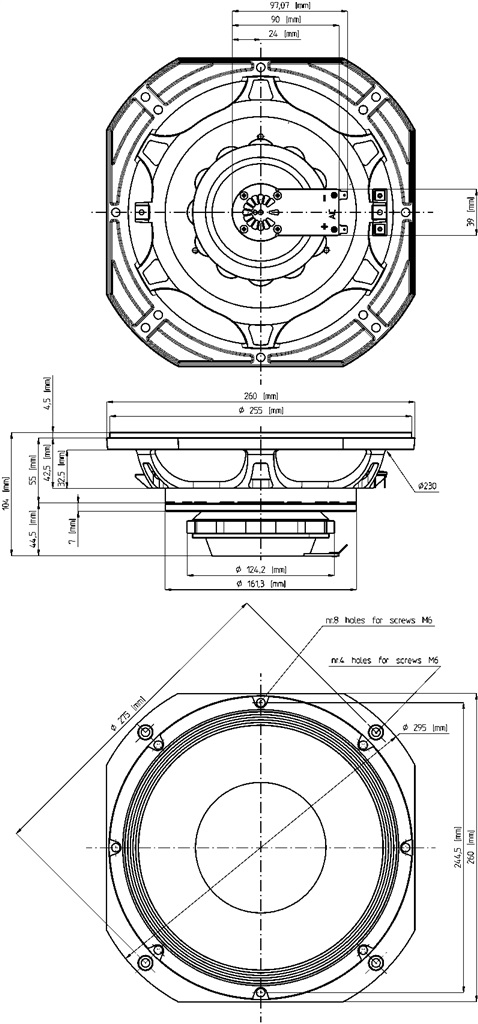

  • Overall Diameter260 mm (10.24 in)
  • Bolt Circle Diameter275 mm (10.83 in)
  • Baffle Cutout Diameter232.0 mm (9.13 in)
  • Depth104 mm (4.09 in)
  • Flange and Gasket Thickness14 mm (0.55 in)
  • Net Weight3.0 kg (6.61 lb)
  • Shipping Weight3.57 kg (7.87 lb)
  • Shipping Box275 x 275 x 164 mm (10.83x10.83x6.46 in)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
