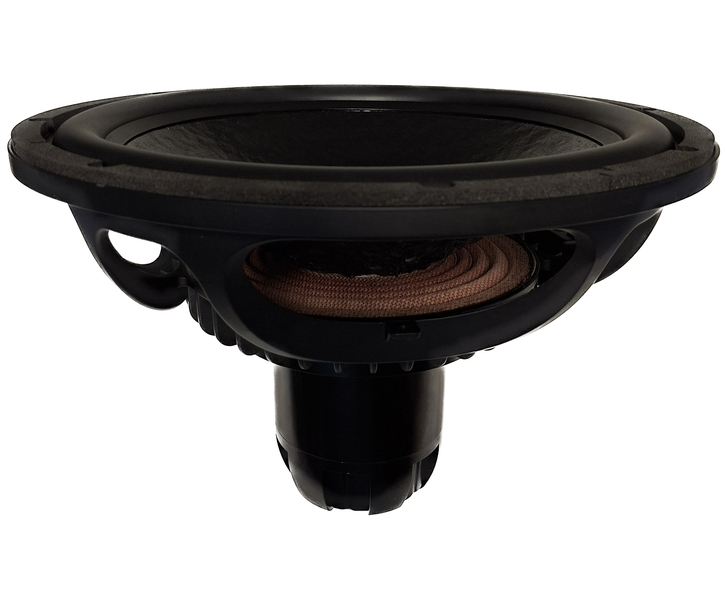

The 15NTLS3500 represents the latest 18sound technology for high quality, low distortion applications. The Tetracoil motor structure maximize its benefits in therms of thermal dissipation and Bl symmetry, making the 15NTLS3500 the perfect component for high quality, low tuning, compact subwoofers. Dual gap motors linearize inductance and the perfect balance we reached between the motor and the ultra linear suspension allows both very high excursion and extreme precision in the mid band with the lowest intermodulation distortion in the professional market. This features, together with its extreme low weight make the 15NTLS3500 the perfect component for highest quality line arrays and two way systems, thanks also to its 1900 watts power handling capabilities.
Especificación
Diseño
Parámetros
Información de montaje y envío
Impedancia nominal8 Ω
Impedancia minima5.8 Ω
Manejo de potencia nominal950 W
Manejo de potencia continua1900 W
Sensibilidad89.0 dB
Rango de frecuencia30 - 2000 Hz
Diámetro de la bobina88 mm (3.5 in)
Material de la bobinacopper
Profundidad del devanado36.0 mm (1.42 in)
profundidad magnética11.0 mm (0.43 in)
Recinto recomendado80.0 dm3 (2.83 ft3)
Sintonía recomendada26 Hz
Frecuencia de resonancia28 Hz
Re5.2 Ω
Qes0.44
Qms8.2
Qts0.42
Vas141.0 dm3 (4.98 ft3)
Sd881.0 cm2 (136.56 in2)
η₀0.7 %
Xmax15.3 mm
Excursión máxima12.5 mm
Mms250.0 g
Bl21.6 Txm
Le1.65 mH
EBP63 Hz
Diámetro total393 mm (15.47 in)
Diámetro de circunferencia de los tornillos371 mm (14.61 in)
Diámetro de la perforación en el baffle357.0 mm (14.06 in)
