The 12NTLW3500 represents the state of the art of 18sound components and technology for highest quality applications. The dual gap technology comes directly from the Tetracoil motor structure and applies its benefits to a wider frequency band, making the 12NTLW3500 capable of working perfectly both as a woofer and as a midbass. Optimized thermal conductivity allows great power handling (up to 1800 watts), the extremely balanced Bl shape together with the ultra linear suspension, maximizes Spl keeping the lowest intermodulation distortion in the market, giving the 12NTLW3500 the amazing capability of reproducing a deep and full low end, together with perfect clarity mids. This unique features, together with the very low weight (only 4.7 Kg) makes the 12NTLW3500 the perfect component for highest quality line arrays and two ways systems.
Especificación
Diseño
Parámetros
Información de montaje y envío
Diámetro nominal300 mm (12.0 in)

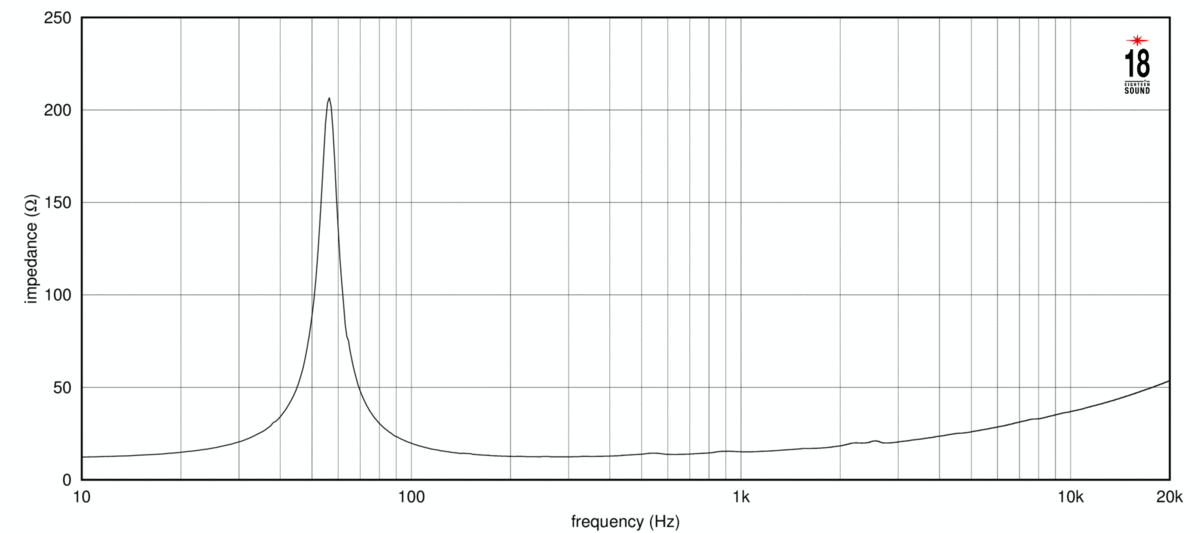

Impedancia nominal16 Ω
Impedancia minima12.5 Ω
Manejo de potencia nominal900 W
Manejo de potencia continua1800 W

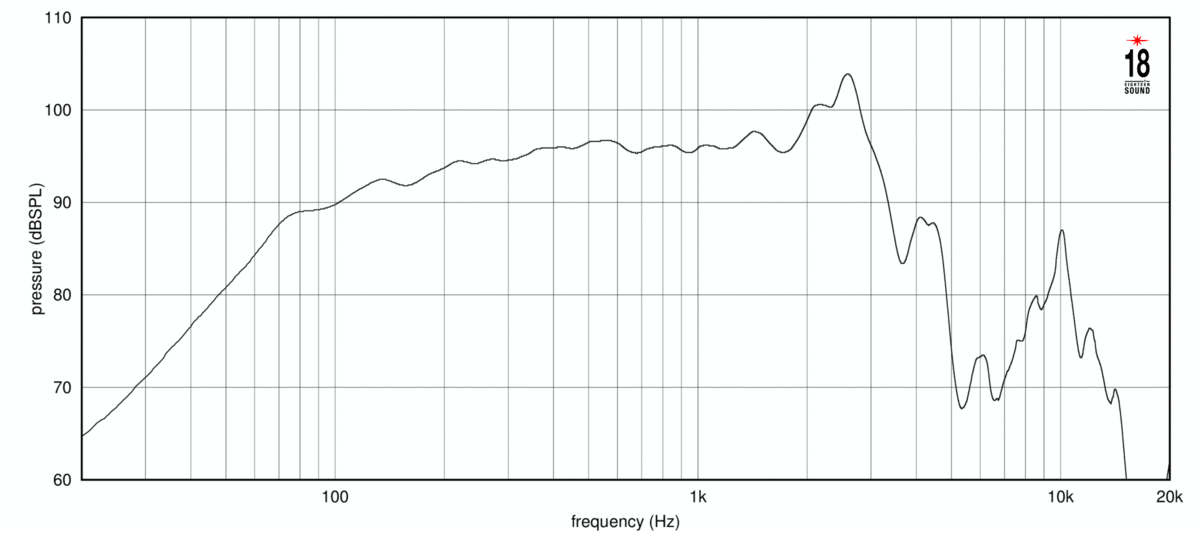

Sensibilidad95.0 dB
Rango de frecuencia50 - 3000 Hz
Diámetro de la bobina88 mm (3.46 in)
Recinto recomendado50.0 dm3 (1.77 ft3)
Sintonía recomendada60 Hz
Frecuencia de resonancia57 Hz
Re11.3 Ω
Qes0.56
Qms11.7
Qts0.54
Vas40.0 dm3 (1.41 ft3)
Sd531.0 cm2 (82.31 in2)
η₀1.3 %
Xmax7.9 mm
Excursión máxima9.5 mm
Mms77.0 g
Bl23.5 Txm
Le0.62 mH
EBP101 Hz
Diámetro total310 mm (12.2 in)
Diámetro de circunferencia de los tornillos295 mm (11.61 in)
Diámetro de la perforación en el baffle282.0 mm (11.1 in)
