    12MB606

    12MB606

    12.0 In


    122_31dbe
    Alternative/Current Model:
    12MB700

    Features

    • 98 dB SPL 1W / 1m average sensitivity
    • 75 mm (3 in) Interleaved Sandwich Voice coil (ISV
    • 450W AES power handling
    • Excellent transient response
    • Ideal for compact two way systems
    • Improved heat dissipation via unique basket design

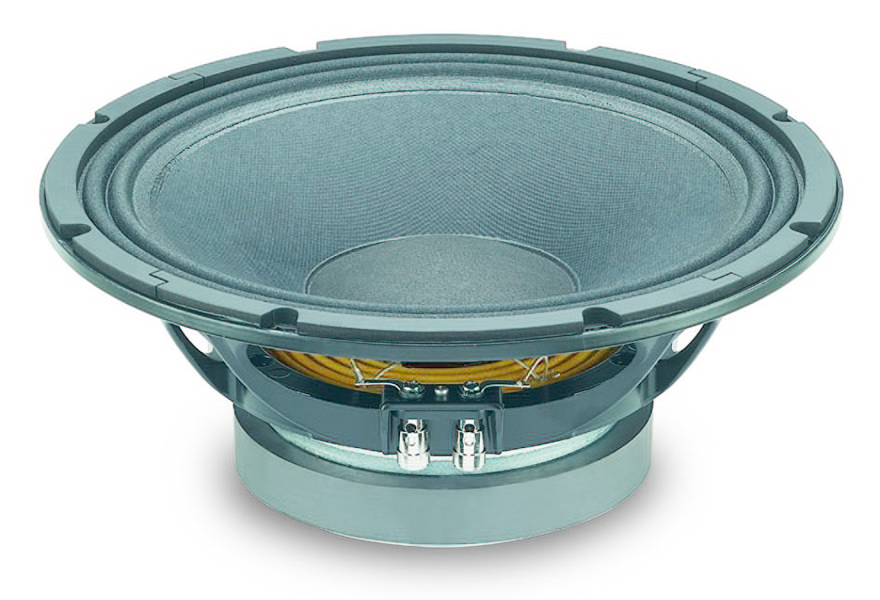

    The 12MB606 ferrite mid bass transducer meets the specific market requirement for a loudspeaker combining good linearity and efficiency with high power handling capabilities.
    The 12MB606 is an ideal low frequency ferrite driver choice for two-way systems where the balance between low frequency
    reproduction and midrange precision is required. Although primarily developed for midbass use, the 12MB606’s versatile characteristics render it suitable for compact reflex subwoofers (around 50-55 lt).
    The curvilinear paper cone has been made with a special high strength wood-pulp designed to achieve the best possible linearity within its intended frequency range and to control bell-mode resonance around the cone circumference.
    The cone is carried by an unusually deep profile, double roll polycotton suspension.
    The suspension geometry has been carefully designed for superior symmetry, resulting in DC offset free movement in the lowest frequency area.
    The 75 mm state-of-the-art voice coil is similar to those fitted to our top-of-the-range 18" and 15" models but it is wound with aluminum wire. It employs our Interleaved Sandwich Voice coil (ISV) technology in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil. The result is an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard.
    The ferrite magnetic structure has been optimized using FEA CAD simulation software to maximize the flux density and symmetry in the voice coil gap region and to minimize weight. A lightweight aluminum basket contributes to an excellent weight to performance ratio for a ferrite driver.
    Due to the increasing use of audio systems at outdoor events, the 12MB606’s ability to perform in adverse, high humidity weather conditions is another excellent feature. This has been achieved by means of a proprietary water-repellent cone treatment.

    Specifications

    Design

    Parameters

    Mounting and Shipping Info

    • Nominal Diameter300 mm ( in)
    • Nominal Impedance8 Ω
    • Minimum Impedance0.0 Ω
    • Nominal Power Handling1450 W
    • Continuous Power Handling2600 W
    • Sensitivity398.0 dB
    • Frequency Range50 - 5200 Hz
    • Voice Coil Diameter75 mm (3.0 in)
    • Winding Materialaluminum
    • Surround ShapeM-roll
    • Cone ShapeStraight
    • Magnet MaterialFerrite
    • Woofer Cone TreatmentWeather protected
    • Recommended Enclosure60.0 dm3 (2.12 ft3)
    • Recommended Tuning55 Hz
    • Resonance Frequency50 Hz
    • Re5.7 Ω
    • Qes0.34
    • Qms6.3
    • Qts0.32
    • Vas84.0 dm3 (2.97 ft3)
    • Sd531.0 cm2 (82.31 in2)
    • Xmax6.5 mm
    • Mms47.0 g
    • Bl16.0 Txm
    • Le1.5 mH
    • EBP147 Hz

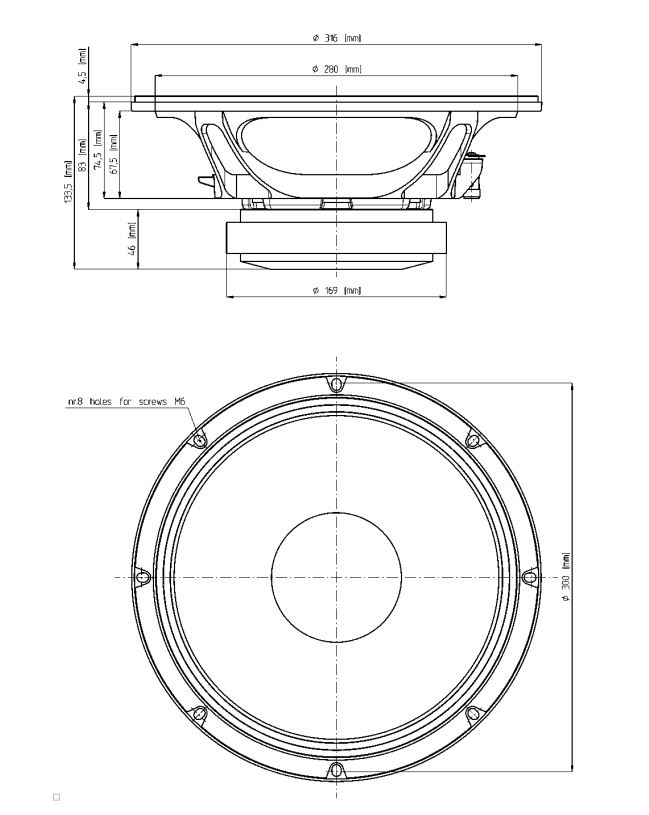

    • Overall Diameter315 mm (12.4 in)
    • Bolt Circle Diameter296 mm (11.65 in)
    • Baffle Cutout Diameter282.0 mm (11.1 in)
    • Depth133 mm (5.24 in)
    • Flange and Gasket Thickness11 mm (0.43 in)
    • Net Weight5.7 kg (12.57 lb)
    • Shipping Weight6.5 kg ( lb)
    • Shipping Box332 x 332 x 184 mm (13.07x13.07x7.24 in)
    • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated nominal impedance. Loudspeaker in free air.
    • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
    • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
