135 mm (5.3 in) split winding four layers ISV copper coil
3600 W program power handling
Carbon fiber cone
Triple Silicon Spider (TSS) improves excursion control and linearity even in extreme loading and SPL conditions
Single Demodulating Ring (SDR) for lower distortion
Low noise cooling design for very low power compression
Suitable for bandpass and horn loaded subwoofer designs

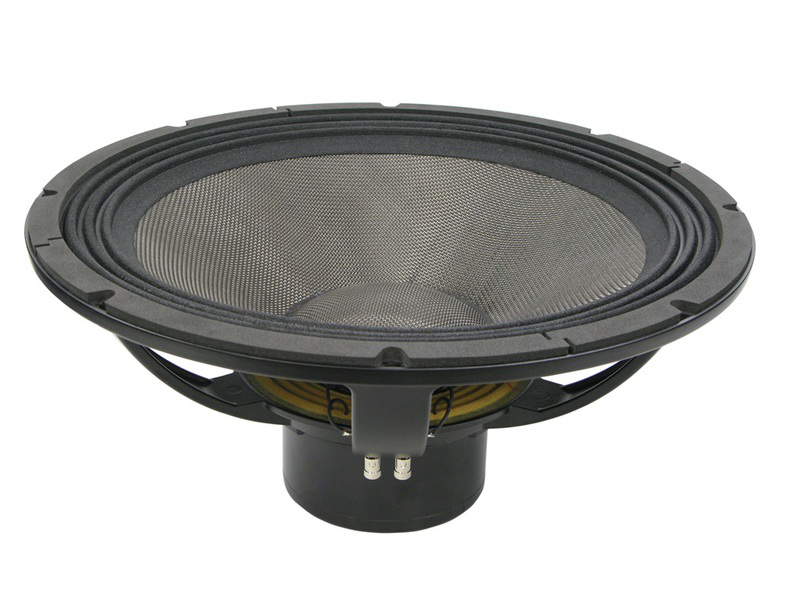

The 21NLW9601C is a 21 inch neodymium high performance transducer. It is the evolution of the 21NLW9601 speaker. The transducer is suitable for high loading, ultra-low frequency horn loaded as well as bandpass subwoofer designs. For optimum results recommended amplifier should be able to deliver 3600 Watt program power without clipping. At the heart of the transducers stands the improved Triple Silicon Spider (TSS) lets the 21NLW9601C being able to control the moving mass with exceptional linearity, showing an exceptional stability of mechanical parameter values in the long term. The transducer design features include a high performance large displacement suspension system for improved cone control even at very high level of SPL matching. The state-of-the-art 5,3" diameter ISV copper voice coil shows a inside-outside split winding, four layers design, enabling the 21NLW9601C to handle up to 3600W program power. Bl force factor as well as all electro-dynamic parameters are linear within the working range. This, together with the high excursion behavior - 70 mm before damage, ±14 mm linear Xmax - makes the 21NLW9601C an extremely low distortion, highly dynamic transducer. The already low distortion and sound quality are further improved by an aluminum Single Demodulating Ring (SDR technology) that flatten impedance and phase with a constant power transfer. The 21NLW9601C has been developed after intense FEA and fluido-dynamics simulation and testing, focusing on dissipating the heat generated by the powerful 5.3" coil. Special attention was given to the optimization of air flow into the gap without introducing audible noise. A special low density material air diffractor placed into the backplate acts as a cooling system, increasing the power handling capability and lowering the power compression figure. Weight reduction was a key development aspect of the 21NLW9601C, resulting in a net value of 14kg (30,9b). The carbon fiber cone shows extreme strength and water repellent properties. A special coating applied to both the top and back plates makes the transducer far more resistant to the corrosive effects of salts and oxidization.
Mounting and Shipping Info
Nominal Diameter533 mm ( in)
Nominal Impedance4 Ω
Minimum Impedance4.0 Ω
Nominal Power Handling11800 W
Continuous Power Handling23600 W
Frequency Range33 - 2000 Hz
Voice Coil Diameter135 mm (5.3 in)
Resonance Frequency38 Hz
Vas140.0 dm3 ( ft3)
Sd1662.0 cm2 (257.61 in2)
Overall Diameter545 mm ( in)
Bolt Circle Diameter520 mm ( in)
Baffle Cutout Diameter492.0 mm ( in)
Depth250 mm ( in)
Flange and Gasket Thickness18 mm ( in)
Net Weight13.6 kg ( lb)
Shipping Weight15.1 kg ( lb)
Shipping Box570x570x290 mm (22,4x22,4x11,4 in) mm ( in)
2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
