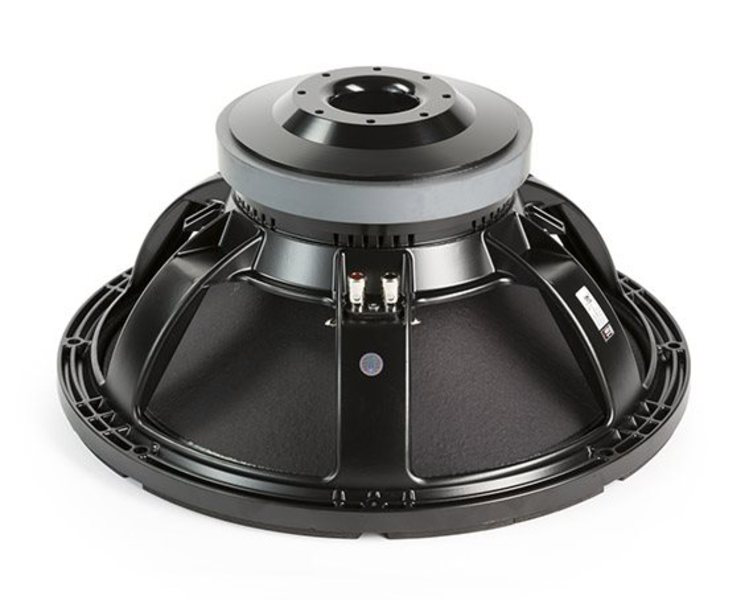

    10_35_47_619_leeoskf3

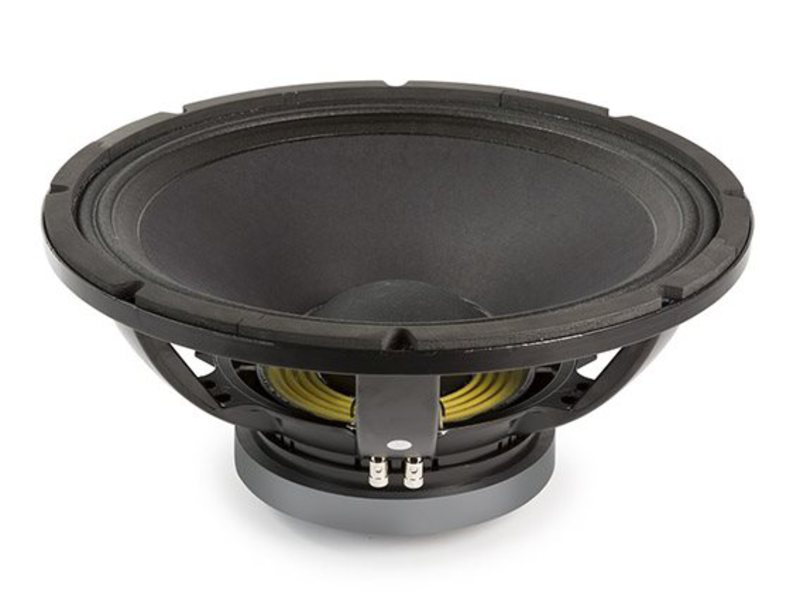

    10_35_47_621_gxg8bdvx
    Alternative/Current Model:
    18LW1251

    Features

    • 99 dB SPL 1W / 1m average sensitivity
    • 100 mm (4 in) Interleaved Sandwich ISV copper voice coil
    • 1200 W AES power handling
    • Double Silicon Spider (DSS) for improved excursion control and linearity
    • Improved heat dissipation via unique basket design and multi-cell air diffractor
    • Weather protected cone and plates for outdoor usage
    • Suitable for high SPL subwoofer designs

    The 18W2001 is the updated version of the classic 18W2000, a low frequency subwoofer which sets a benchmark in 18" (460 mm) high output transducers. Showing 20% higher power handling and 10% lower weight, it represents a significative development of the acclaimed 18W1000 model. The 18W2001 can be used as a low bass or subwoofer component in either a reflex, bandpass or horn loaded configuration. It provides clean, linear, undistorted low frequency reproduction at very high power levels. The high excursion capabilities of the surround and suspension system, in conjunction with the Double Silicon Spider (DSS), enable the 18W2001 to achieve high levels of linear travel while maintaining full control of the moving mass. The high quality curvilinear cone assures smooth response and exceptional strength with maximum reliability under high mechanical stress. The 100mm diameter copper wire voice coil employs the Interleaved Sandwich Voice coil (ISV) technology, in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a balanced coil with a uniform distribution of mass and motive energy. This results in an extremely linear motor assembly. Maximum flux concentration and force factor in the gap is assured by the unique shape and design of the top and back plates, which have been researched and designed using our in-house magnetic flux FEA CAD resource. 18W2001 uses the voice coil ventilation technology developed for our flagship 9000 neodymium transducer series. A special low density multi-cell material air diffractor has been placed into the backplate acting as a cooling system, increasing power handling capability and lowering the power compression figure. As a final result Eighteen Sound engineers obtained almost 1 dB reduction in full power power compression value if compared to 18LW1400, and an increased program power handling value of 2400 Watt. 18W2001 is able to perform in adverse weather conditions or in areas of high humidity. This key feature has been achieved using an exclusive water repellent cone treatment and magnetic plate coating which resists against environmental corrosion.

    Specifications

    Design

    Parameters

    Mounting and Shipping Info

    Service Kit

    • Nominal Diameter460 mm ( in)
    • Nominal Impedance8 Ω
    • Minimum Impedance7.3 Ω
    • Nominal Power Handling11200 W
    • Continuous Power Handling22400 W
    • Sensitivity399.0 dB
    • Frequency Range37 - 3000 Hz
    • Voice Coil Diameter100 mm (4.0 in)
    • Recommended Enclosure200.0 dm3 (7.06 ft3)
    • Recommended Tuning42 Hz
    • Resonance Frequency37 Hz
    • Re5.8 Ω
    • Qes0.26
    • Qms7.29
    • Qts0.25
    • Vas230.0 dm3 ( ft3)
    • Sd1134.0 cm2 (175.77 in2)
    • Xmax7.0 mm
    • Mms143.0 g
    • Bl27.1 Txm
    • Le1.9 mH
    • EBP142 Hz
    • Overall Diameter462 mm ( in)
    • Bolt Circle Diameter438 mm ( in)
    • Baffle Cutout Diameter416.0 mm ( in)
    • Depth205 mm ( in)
    • Flange and Gasket Thickness19 mm ( in)
    • Net Weight11.5 kg ( lb)
    • Shipping Weight13.0 kg ( lb)
    • Shipping Box482 x 482 x 257 mm (18.98x18.98x10.12 in)
    • 0271882010
    • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated nominal impedance. Loudspeaker in free air.
    • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
    • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
