Fuyszdxr

Features

  • Next Gen Titanium diaphragm for higher sensitivity and extended high frequency
  • 113 dB 1W / 1m average sensitivity
  • 1.5 inch throat exit
  • 4 inch edgewound aluminium voice coil
  • 320W max. program power handling
  • HF copper sleeve for reduced distortion and increased output
  • BEM optimized 4-slot metal alloy phase plug
  • Available also in 1.4” and 2” exit version

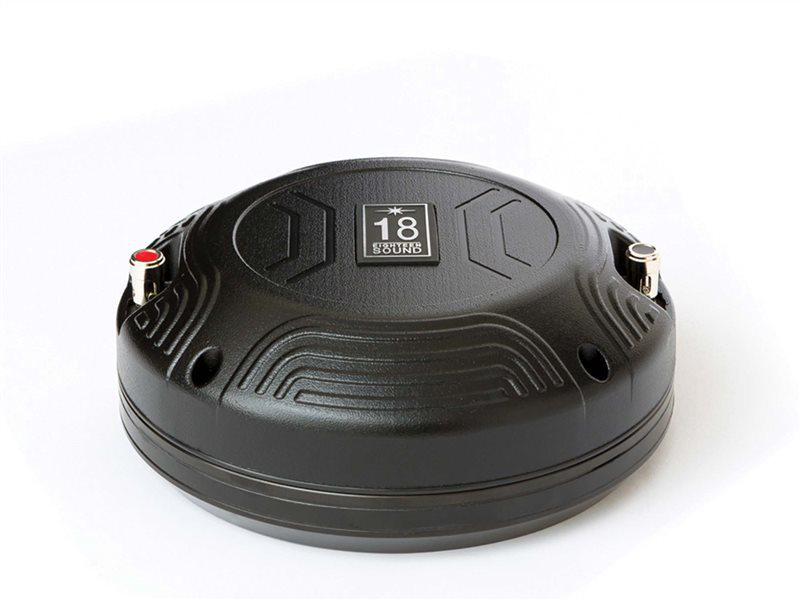

NSD4015Ti2 is a 1.5 inch exit neodymium compression driver designed for extremely high quality, high output sound system applications. Featuring a four inch copper-clad aluminum voice-coil and dome, the pure titanium membrane with integral surround has been optimized for high sensitivity and efficiency and an extended high frequency region. While maintaining a broad piston band and low distortion the results are maximum sound output with natural sound character and exceptional clarity up to the highest end of the frequency spectrum.

Specifications

Mounting and Shipping Info

  • Throat Diameter40 mm (1.5 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance6.9 Ω
  • Nominal Power Handling1160 W
  • Continuous Power Handling2320 W
  • Sensitivity3113.0 dB
  • Frequency Range0.8 - 20.0 kHz
  • Recommended Crossover40.8 kHz
  • Voice Coil Diameter100 mm (4.0 in)
  • Winding MaterialAluminum
  • Diaphragm MaterialTitanium
  • Flux Density2.0 T
  • Magnet MaterialNeodymium
  • Overall Diameter150 mm (5.91 in)
  • Depth57 mm (2.24 in)
  • Net Weight3.2 kg (7.05 lb)
  • Shipping Weight3.35 kg (7.39 lb)
  • Shipping Box170 x 170 x 80 mm (6.69x6.69x3.15 in)
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
