Features

  • 1 inch exit throat
  • 109 dB SPL 1W / 1m average sensitivity
  • 25,4 mm (1 in) edgewound aluminum voice coil
  • 50 Watt program power handling
  • Low weight, easy mounting and handling structure
  • Usable in two way or multiway systems

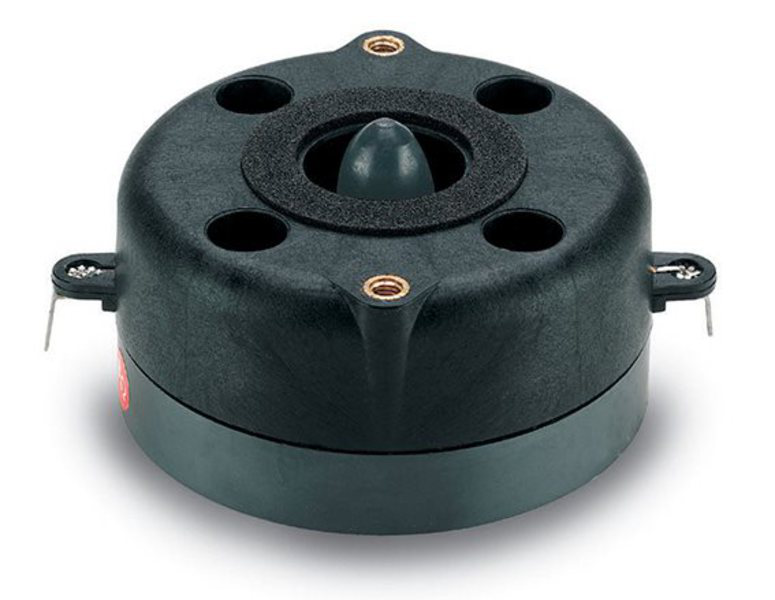

The HD125 1 inch exit HF unit has been designed as the natural evolution of the industry standard HD120 compression driver. It delivers an unmatched combination of extended linear frequency response and very high efficiency.
The HD125 diaphragm assembly is made in proprietary treated polyethylene material. This design maintains the minimum resonance frequency point value at 1600 Hz, extending the frequency response in the mid region when compared to HD120 compression driver.
The design of diaphragm and its surround in polyester material allow a best movement and stress control; the special radial ribs increase stiffness avoiding uncontrolled vibration modes in the usable frequency range.
An edge-wound aluminum voice coil, wounded on proprietary treated Nomex, completes diaphragm assembly. Thanks to its physical properties, the voice coil former shows 30% higher value of tensile elongation at working operative temperature (200°C) when compared to Kapton. This plus is capable to keep properly energy transfer control to the dome in real working conditions. Moreover, this particular former material is suitable to work also in higher moisture contents environments.
The polypropylene phase plug is the result of a meticulous design exercise. Its shape assures the correct acoustic impedance of the radiating dome, reducing distortion levels across a very wide frequency range. At the end, it results in a smooth coherent wavefront in the horn entrance, high thermal stability and manufacturing consistency.
The HD125 compact size and lightweight ceramic magnet assembly has been designed to obtain 16 KGauss in the gap.

Specifications

Mounting and Shipping Info

  • Throat Diameter25 mm (1.0 in)

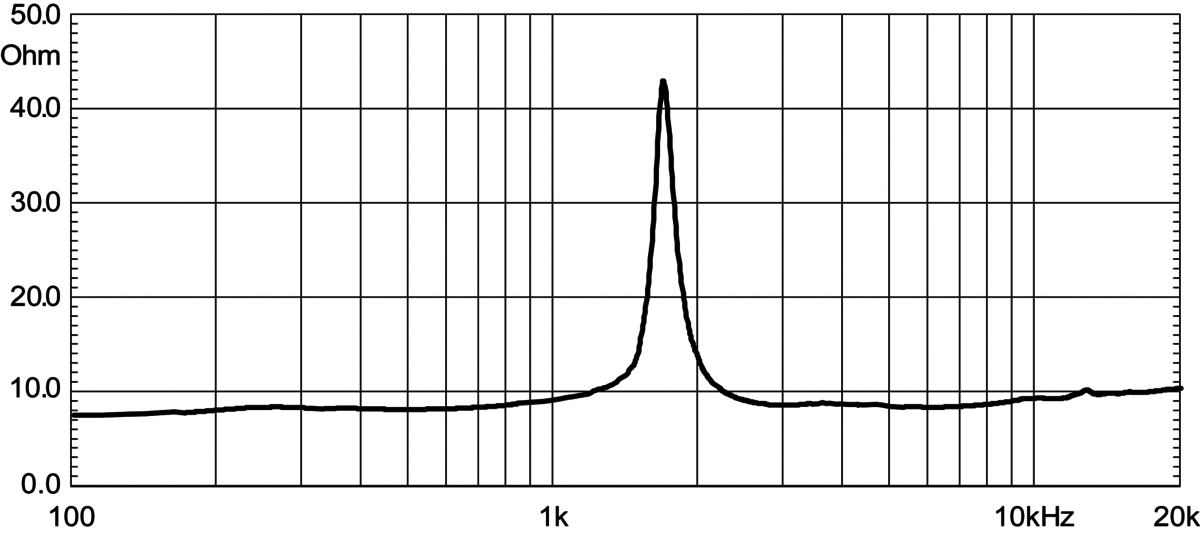

  • Nominal Impedance8 Ω
  • Minimum Impedance8.0 Ω
  • Nominal Power Handling125 W
  • Continuous Power Handling250 W
  • Sensitivity3109.0 dB

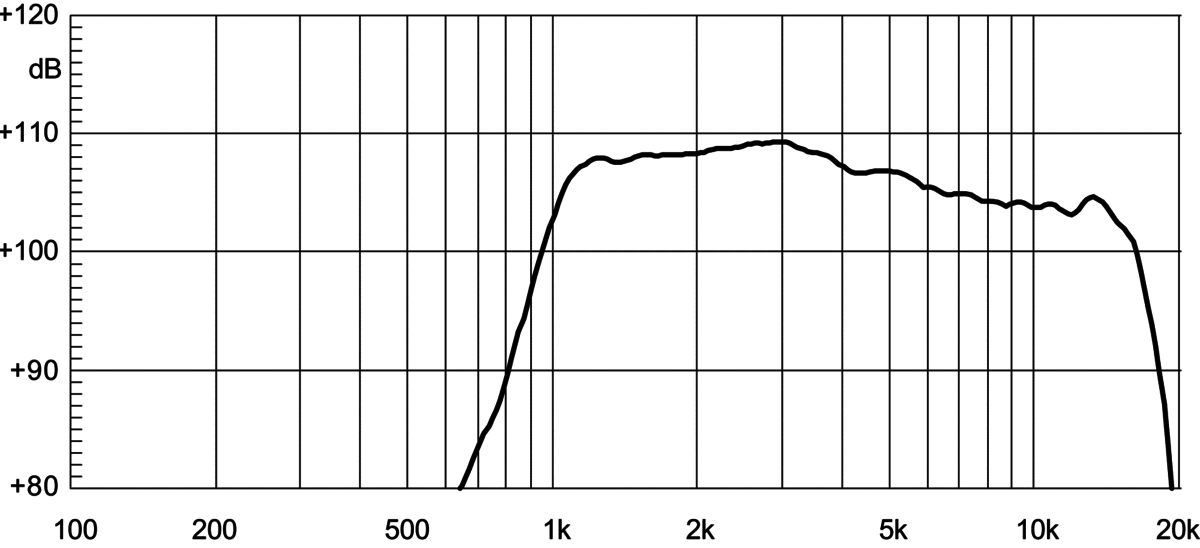

  • Frequency Range2.0 - 18.0 kHz
  • Recommended Crossover42.5 kHz
  • Voice Coil Diameter25 mm (1.0 in)
  • Flux Density1.65 T

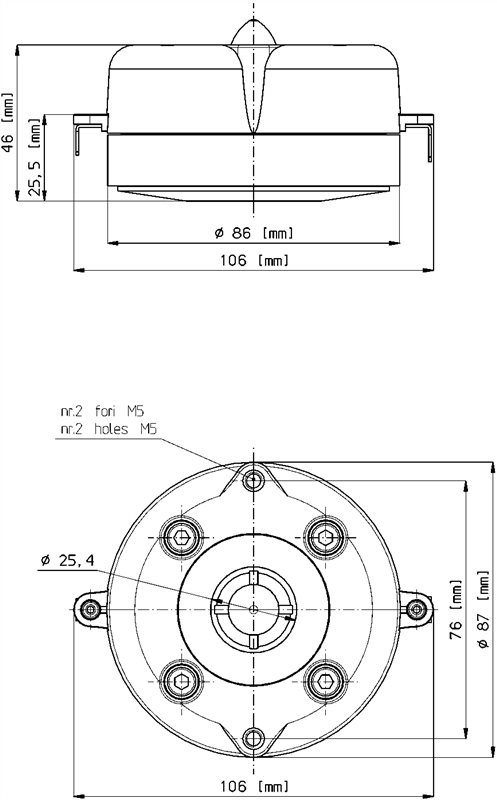

  • Overall Diameter87 mm (3.43 in)
  • Depth46 mm (1.81 in)
  • Net Weight0.8 kg (1.76 lb)
  • Shipping Weight0.9 kg (1.98 lb)
  • Shipping Box90x90x70 mm (3.54x3.54x2.76 in)
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
