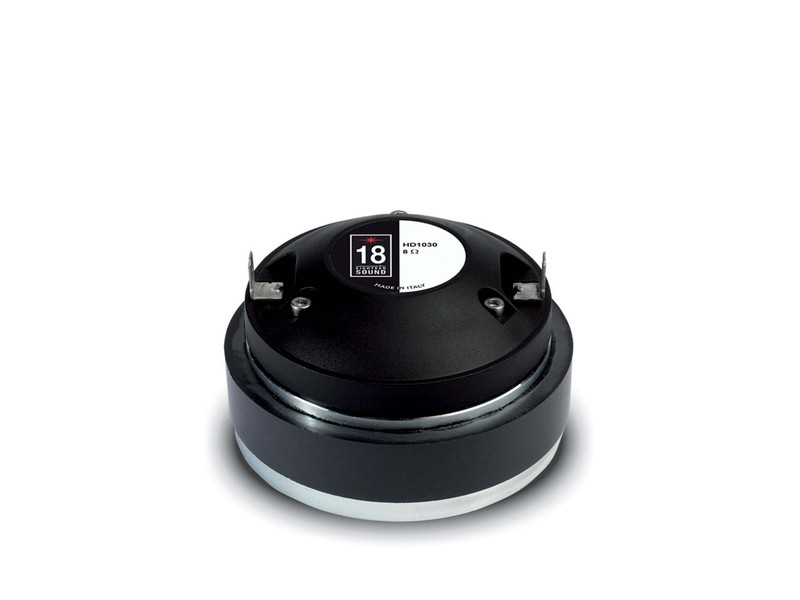

Hd1030

Features

  • 1 inch exit throat
  • 106 dB SPL 1W / 1m average sensitivity
  • 34,4 mm (1 1/3 inch) voice coil diameter
  • 60 Watt program power handling
  • Titanium diaphragm
  • Proprietary phase plug design
  • Usable in two way or multiway systems

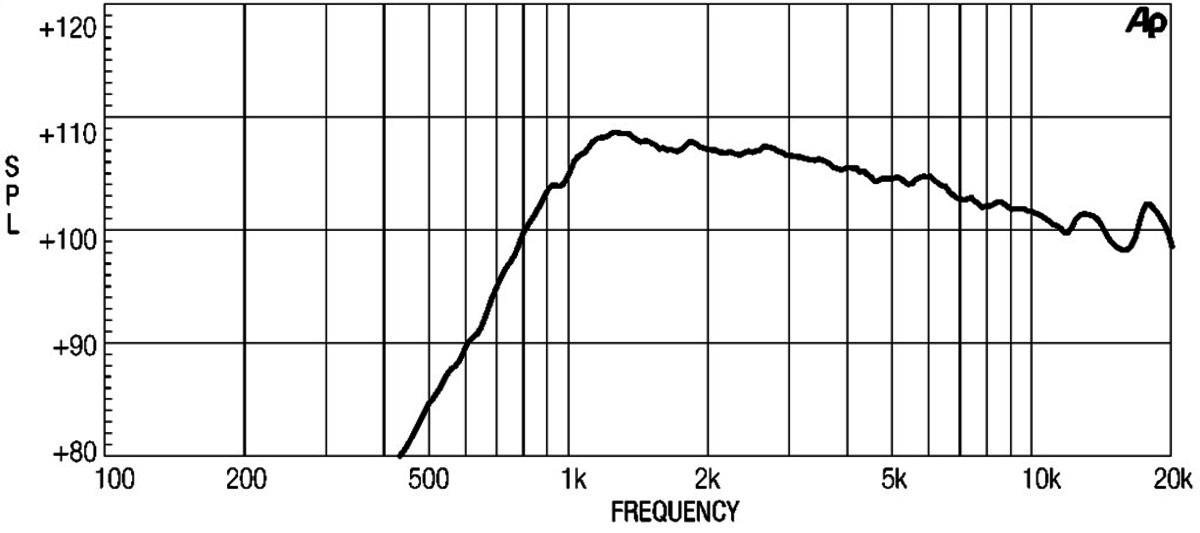

The HD1030 1 inch exit high frequency compression driver has been designed for use in two-way audio systems. The transducer exhibits a constant slope response from 1.5kHz to 18kHz with a uniform and smooth roll-off. With a 800 Hz free air resonance frequency, the HD1030 can easily be cut-off at 1800Hz and is capable of 60W continuous power handling with a 1800Hz pink-noise signal, and a 6dB crest factor with a minimum 12dB/oct crossover slope. Equipped with unique Phase Plug architecture, the HD1030 has been designed to give a smooth coherent wavefront at the horn entrance in the whole working frequency range, as well as high level manufacturing consistency. The phase plug with its short openings and high flare rate value assures low distortion and demonstrates remarkable improvements in mid-high frequency reproduction. The titanium diaphragm assembly, with its ellipsoidal suspension shape, exhibits a constant slope response from 1.5kHz up to 18kHz with uniform smooth roll-off behavior. An edge-wound aluminum voice coil, wound on proprietary treated Nomex, completes the diaphragm assembly. Nomex shows a 30% higher value of tensile elongation at a working operative temperature (200°C) when compared to Kapton. This feature enables proper energy transfer control from the voice coil to the dome in real working conditions. Moreover, this proprietary former material is also suitable for use in higher moisture content environments. The HD1030 powerful ceramic magnet assembly has been designed to obtain 15 KGauss in the gap within a compact ferrite motor structure.

Specifications

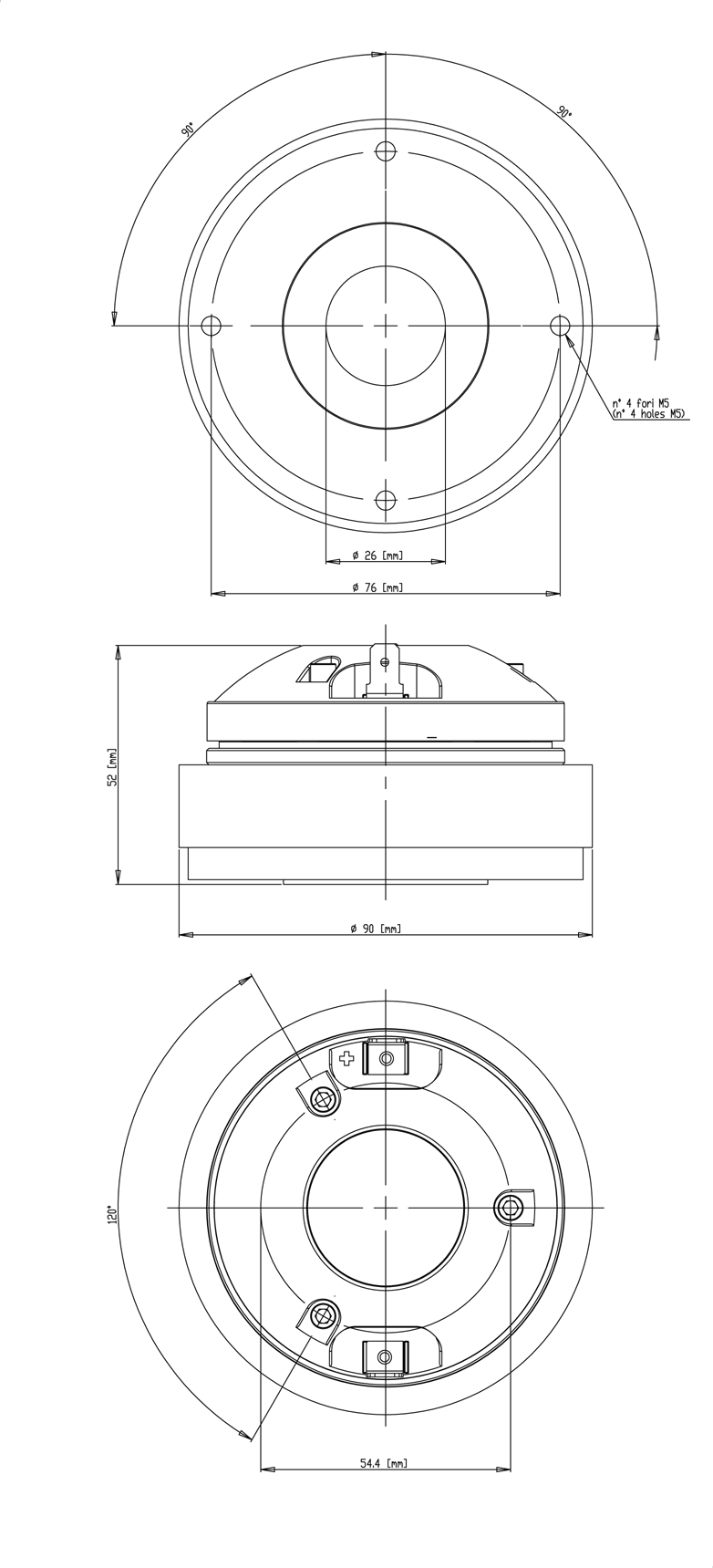

Mounting and Shipping Info

  • Throat Diameter25 mm (1.0 in)

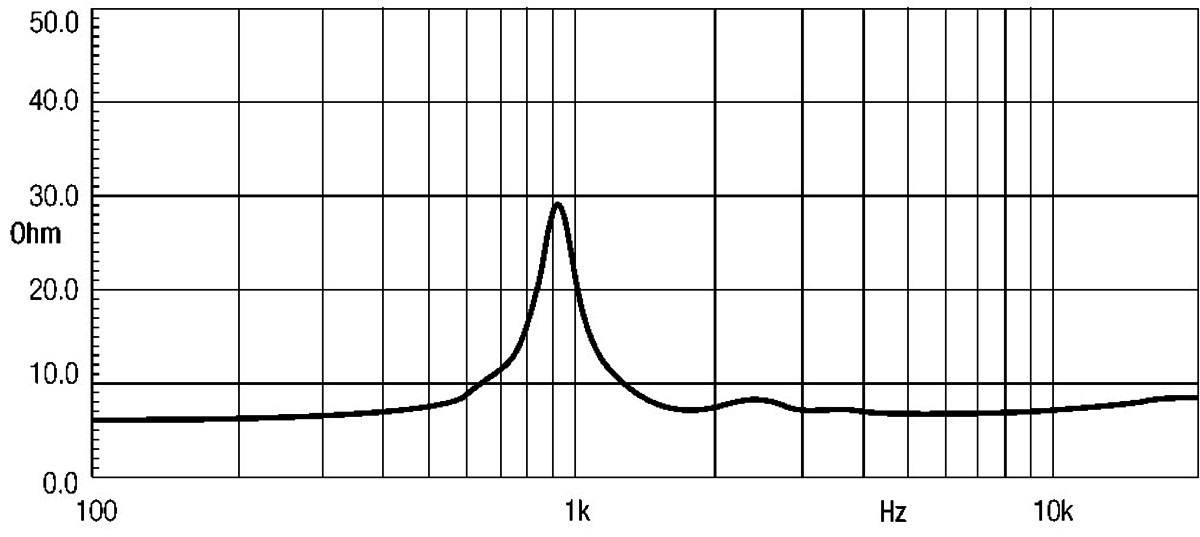

  • Nominal Impedance8 Ω
  • Minimum Impedance6.5 Ω
  • Nominal Power Handling130 W
  • Continuous Power Handling260 W
  • Sensitivity3106.0 dB
  • Frequency Range1.8 - 20.0 kHz
  • Recommended Crossover41.8 kHz
  • Voice Coil Diameter34 mm (1.35 in)
  • Winding MaterialAluminum
  • Diaphragm MaterialTitanium
  • Flux Density1.5 T
  • Magnet MaterialFerrite
  • Overall Diameter91 mm (3.58 in)
  • Depth51 mm (2.01 in)
  • Net Weight1.0 kg (2.2 lb)
  • Shipping Weight1.1 kg (2.43 lb)
  • Shipping Box97x97x58 mm (3.82x3.82x2.28 in)
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
