Features

  • 96dB LF -108dB HF SPL 2.83v average sensitivity
  • Dual neodymium magnet single motor
  • 1200W LF - 260W HF maximum program power handling
  • Smooth on/off axis 90° response
  • 100 mm (4”) Interleaved Sandwich LF Voice coil (ISV)
  • Aluminum Demodulating Ring (SDR) for minimum LF distortion
  • 100 mm (4”) Edge-wound Aluminum ribbon HF voice coil (EWAL)
  • HF pure titanium diaphragm
  • HF copper sleeve for reduced distortion and higher output
  • Smooth on/off axis 90° response
  • Suitable for compact enclosures and stage monitors

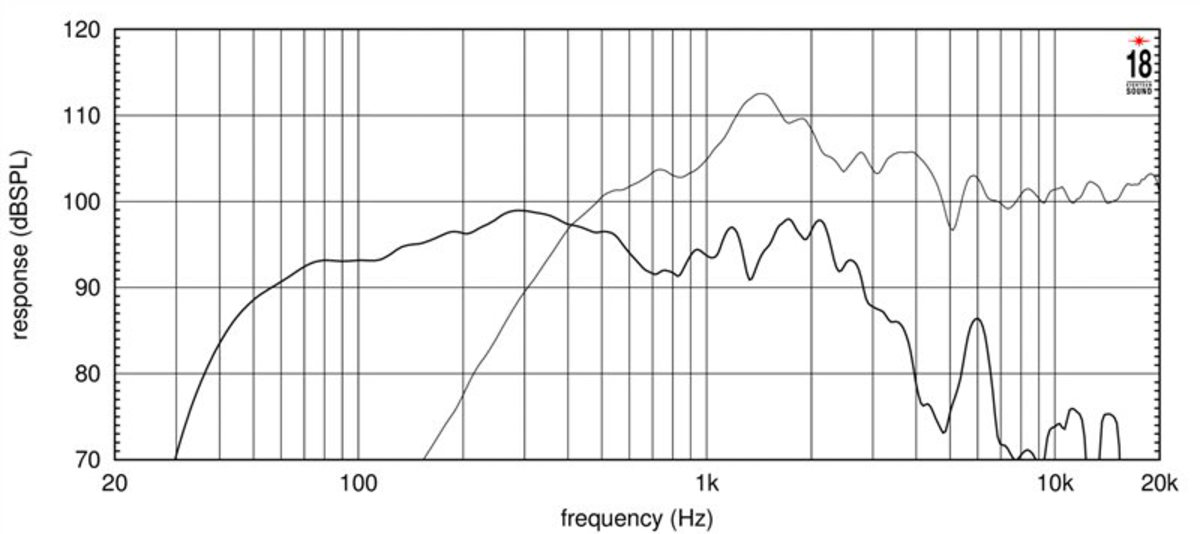

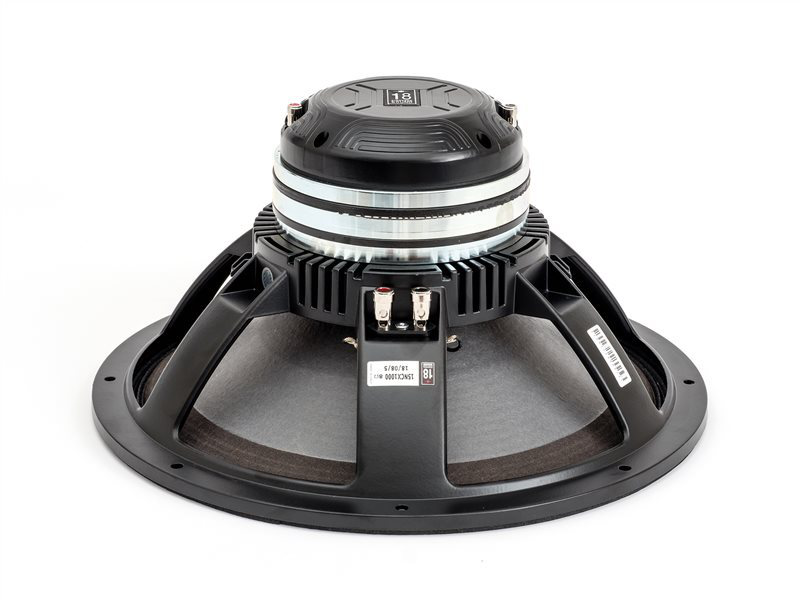

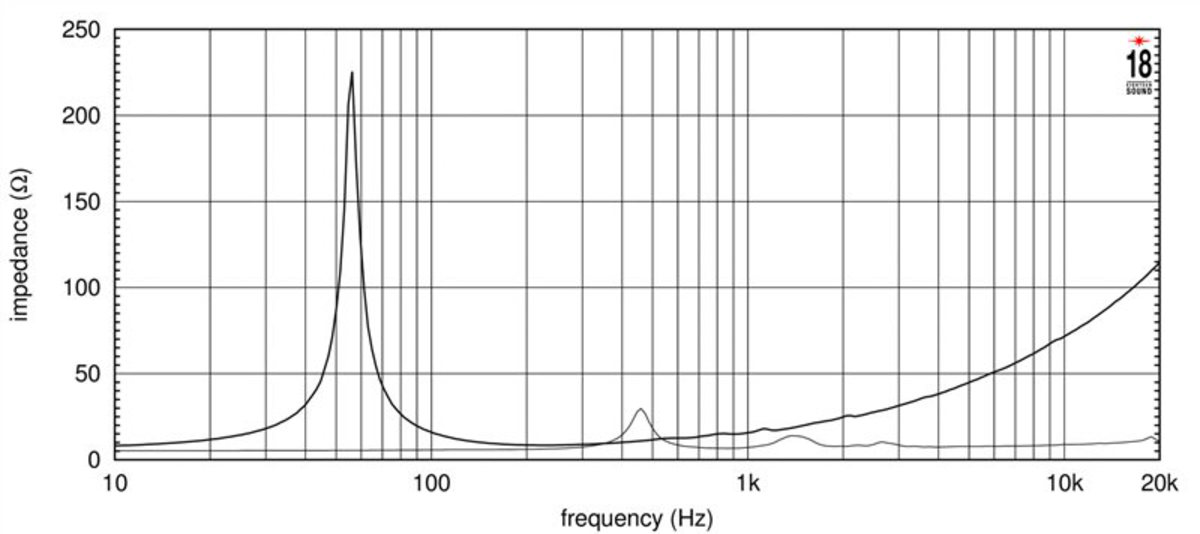

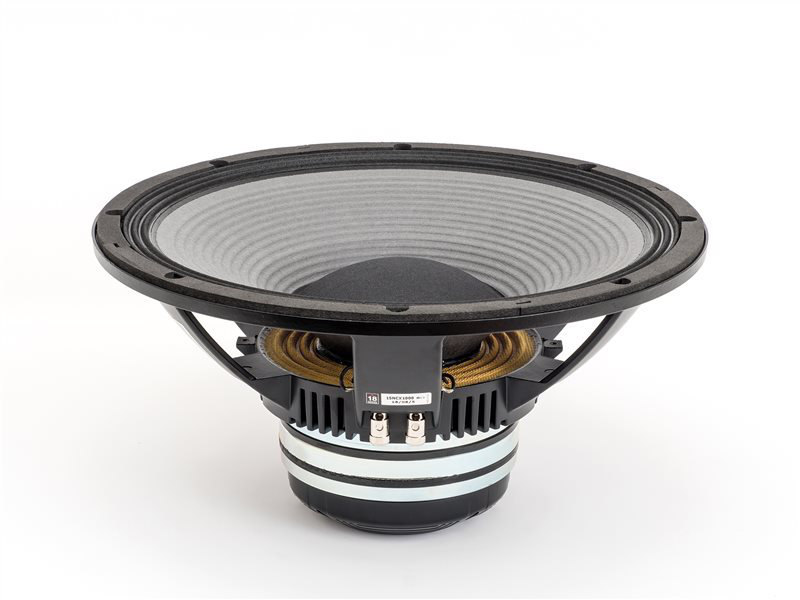

The 15NCX1000 is a 15" diameter neodymium coaxial transducer designed for use in compact reflex enclosures and stage monitors. The LF cone provides smooth response within its intended frequency range thanks to its high damping pulp composition. Equipped with proprietary phase plug, the integrated 100mm (4") HF compression driver has been designed to give smooth coherent wavefront in the horn entrance in all working frequency range and high level manufacturing consistency. The phase plug assures low distortion with remarkable improvements in mid-high frequency reproduction. A copper ring on the pole piece reduces the inductance figure of frequencies above 10 kHz, improving phase and impedance linearisation.
The 4" diameter HF diaphragm assembly uses a high strength, high temperature treated Nomex voice coil former joined directly to the titanium diaphragm on its upper bend edge, assuring extended frequency energy transfer. This improves linearity and shows unparalleled reliability when compared with a straight former joint.
A specific HF exit profile design has been chosen in order to maximize the cone’s profile coupling.
The unique dual magnet single motor features high grade neodymium that makes the 15NCX1000 a lightweight speaker for its performance class.

Specifications

Specifications LF unit

Specifications HF unit

Parameters

Mounting and Shipping Info

  • Nominal Diameter380 mm (14.96 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance LF6.1 Ω
  • Frequency Range44 - 3600 Hz
  • Dispersion Angle190 °
  • Woofer Cone TreatmentWater repellent
  • LF Sensitivity296.0 dB
  • LF Nominal Power Handling3600 W
  • LF Continuous Power Handling41200 W
  • LF Voice Coil Diameter100 mm (4.0 in)
  • LF Winding MaterialCCAW Aluminum
  • HF Sensitivity5108.0 dB
  • HF Nominal Power Handling6130 W
  • HF Continuous Power Handling7260 W
  • HF Voice Coil Diameter100 mm (4.0 in)
  • HF Winding MaterialEdge wound CCAW
  • Diaphragm MaterialTitanium
  • Recommended Crossover81.0 kHz
  • Resonance Frequency53 Hz
  • Re6.3 Ω
  • Qes0.32
  • Qms10.4
  • Qts0.31
  • Vas75.0 dm3 (2.65 ft3)
  • Sd881.0 cm2 (136.56 in2)
  • η₀4.2 %
  • Xmax7.5 mm
  • Mms110.0 g
  • Bl27.5 Txm
  • Le1.4 mH
  • EBP165 Hz

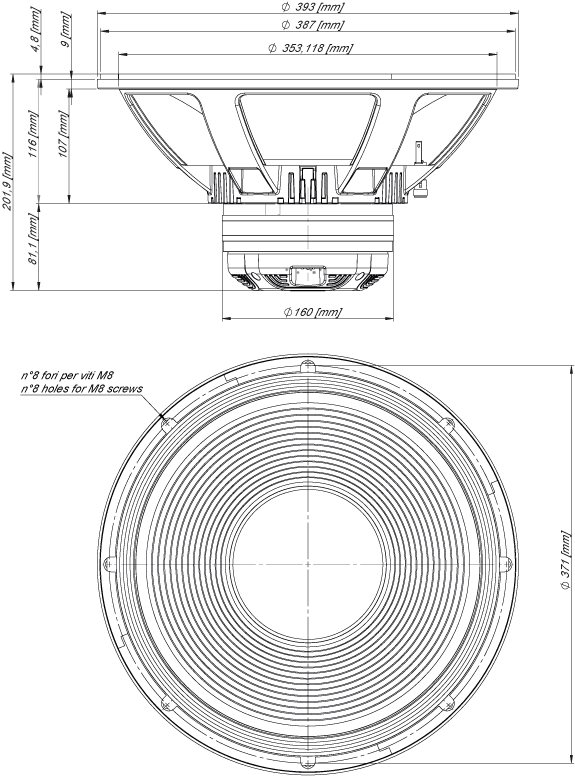

  • Overall Diameter393 mm (15.47 in)
  • Bolt Circle Diameter371 mm (14.61 in)
  • Baffle Cutout Diameter354 mm (13.94 in)
  • Depth197 mm (7.76 in)
  • Flange and Gasket Thickness12 mm (0.47 in)
  • Net Weight8.5 kg (18.74 lb)
  • Shipping Weight9.6 kg (21.16 lb)
  • Shipping Box405 x 405 x 260 mm (15.94x15.94x10.24 in)
  • Included by –6 dB down points.
  • Applied RMS Voltage is set to 2.83V.
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83V.
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • 12 dB/oct. or higher slope high-pass filter.
